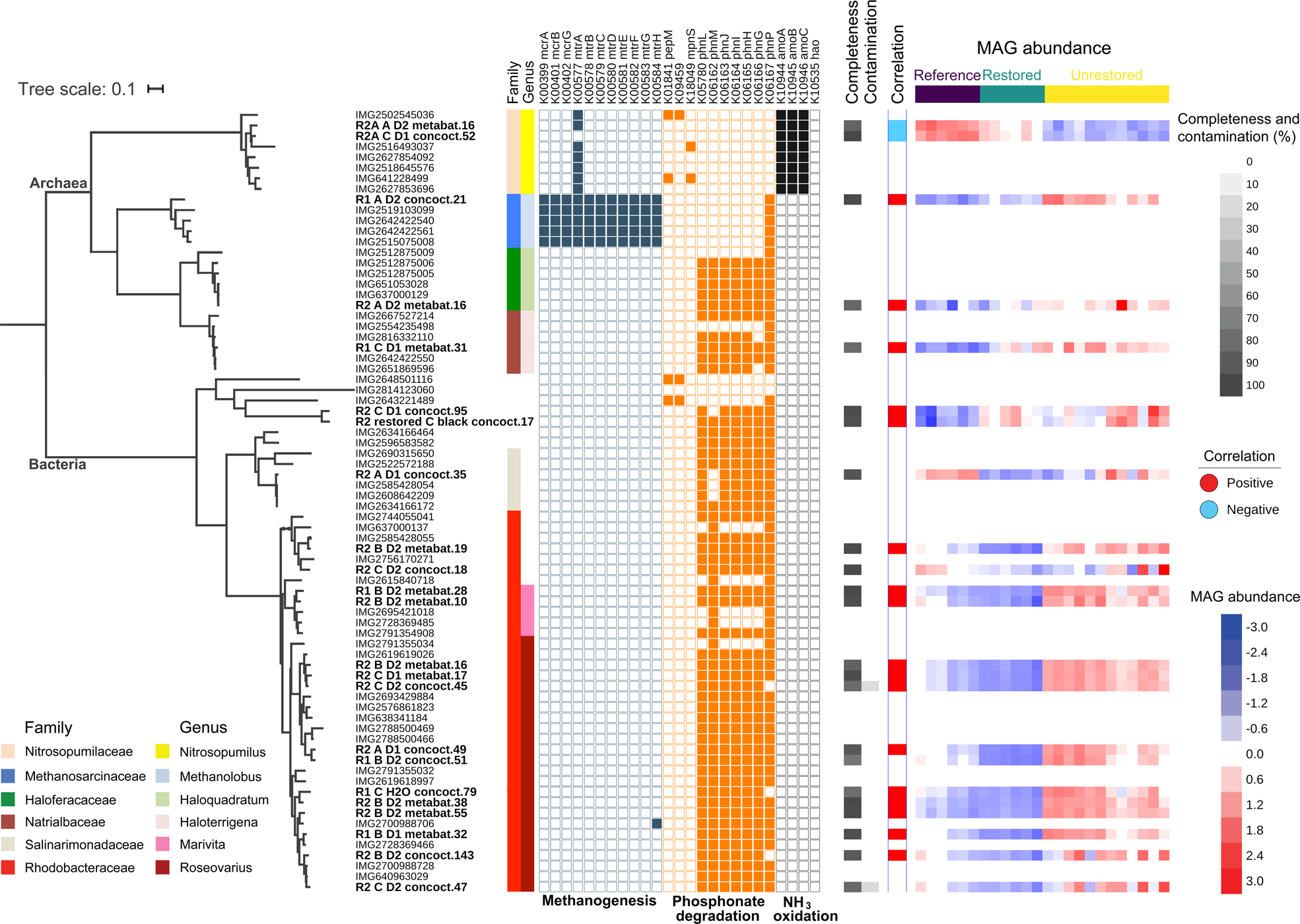

Fig. 4: A phylogenetic tree of 23 metagenome-assembled genomes (bolded) with methane generation-related genes and their closest neighbors among IMG reference genomes, constructed based on 56 SCGs. | The ISME Journal

Fig. 4: A phylogenetic tree of 23 metagenome-assembled genomes (bolded) with methane generation-related genes and their closest neighbors among IMG reference genomes, constructed based on 56 SCGs.

From: Microbial drivers of methane emissions from unrestored industrial salt ponds

Fig. 4

Columns from left to right: family, genus, presence/absence of specific methane cycling genes, percentage of completeness and contamination, correlation with methane (only MAGs with Spearman’s |r| > 0.5), and abundance (log2 and then z-score transformed). Note that one MAG (“R2 restored C black concoct.17”) comes from the additional March 2015 unrestored pond R2 sample, while all of the other bolded MAGs are from the main sampling in July 2014.
