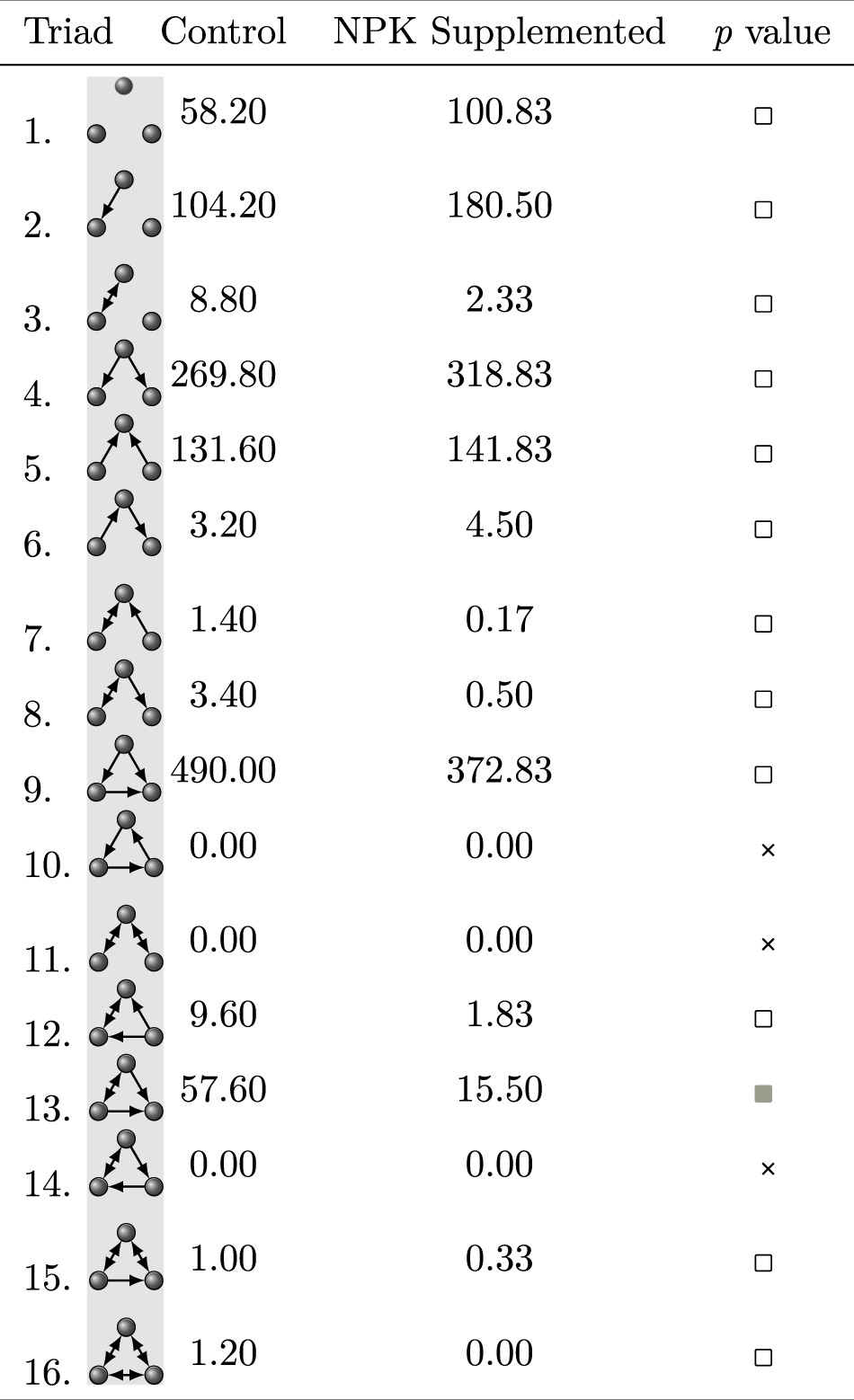

Table 4 Welch’s two-sample t-Test comparisons of network triad counts across treatments.
From: Network structure of resource use and niche overlap within the endophytic microbiome
|
- Boxes are colored according to the treatment with the larger value for each metric,
for control, and
for NPK (none present). Empty boxes signify p values > 0.05. × indicates cases where both treatments had no instances of that particular triad. The single significant difference has a p value of 0.028. The p values are uncorrected for multiple hypothesis testing and applying such a correction removes all significant differences. We omit the outlying control network with fewer than twenty isolates; inclusion of this community causes one other relationship to become significant: Triad 2 becomes significantly higher in NPK relative to Control plants.
