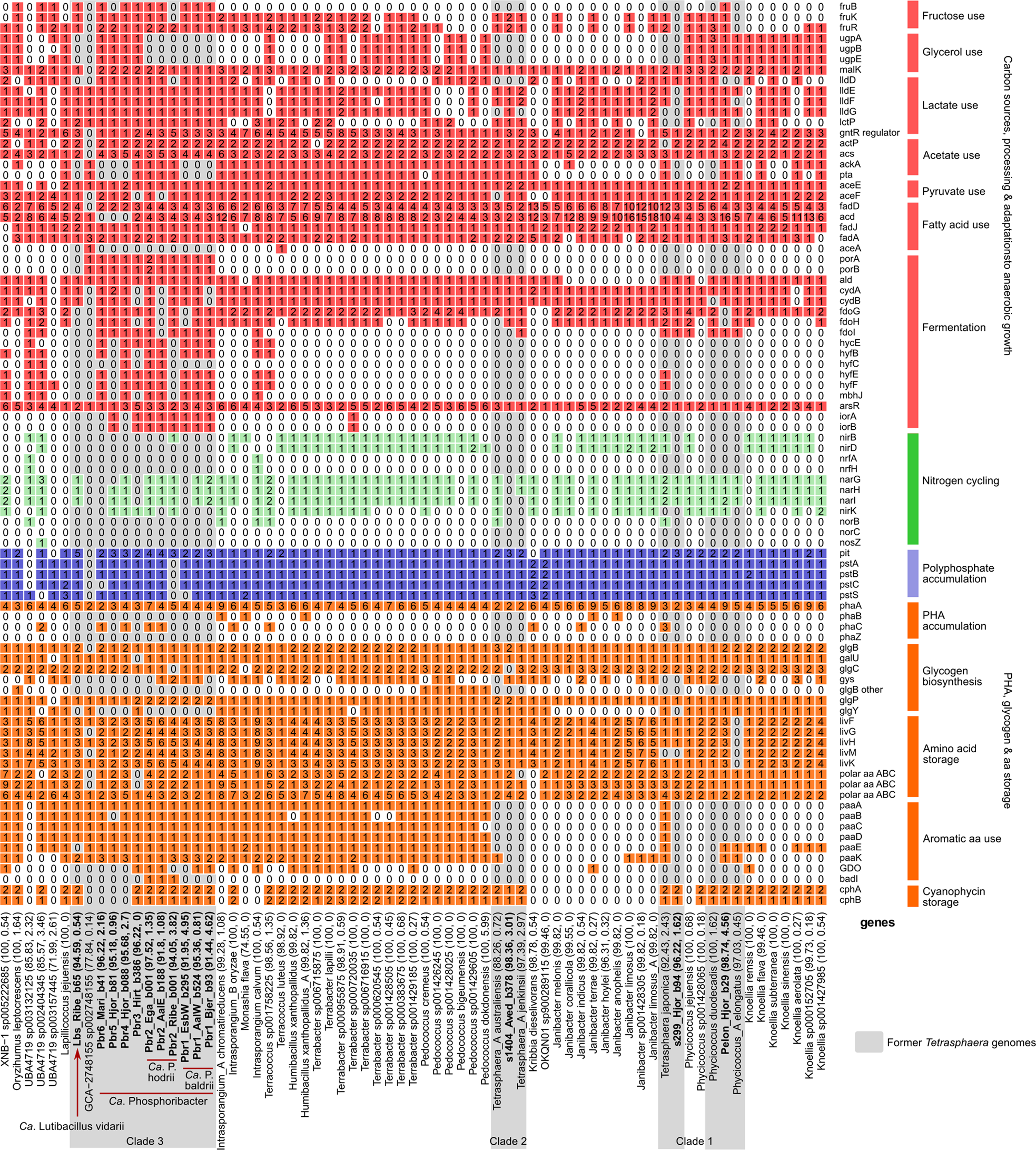

Fig. 3: Basic functional potential of the Tetrasphaera MAGs and closest relatives (Tetrasphaera related cluster, TRC), with focus on functions related to nutrient-removal physiologies.

From: The novel genus, ‘Candidatus Phosphoribacter’, previously identified as Tetrasphaera, is the dominant polyphosphate accumulating lineage in EBPR wastewater treatment plants worldwide

Fig. 3

The gene list follows the progression in the text. For the full list of gene names and associated KO numbers see Supplementary Data File 4. The MAGs and genomes are ordered by the genome tree in Fig. 1, with their genome completeness and contamination indicated within the parentheses. Numbers in the plot represent the number of protein sequences identified in each MAG by EnrichM (i.e., number of hits to KOs).
