Fig. 2: The annual dynamics of water column density and nutrients at Station A in the Gulf of Aqaba, Red Sea. | The ISME Journal

Fig. 2: The annual dynamics of water column density and nutrients at Station A in the Gulf of Aqaba, Red Sea.

From: Cyanophages from a less virulent clade dominate over their sister clade in global oceans

Fig. 2

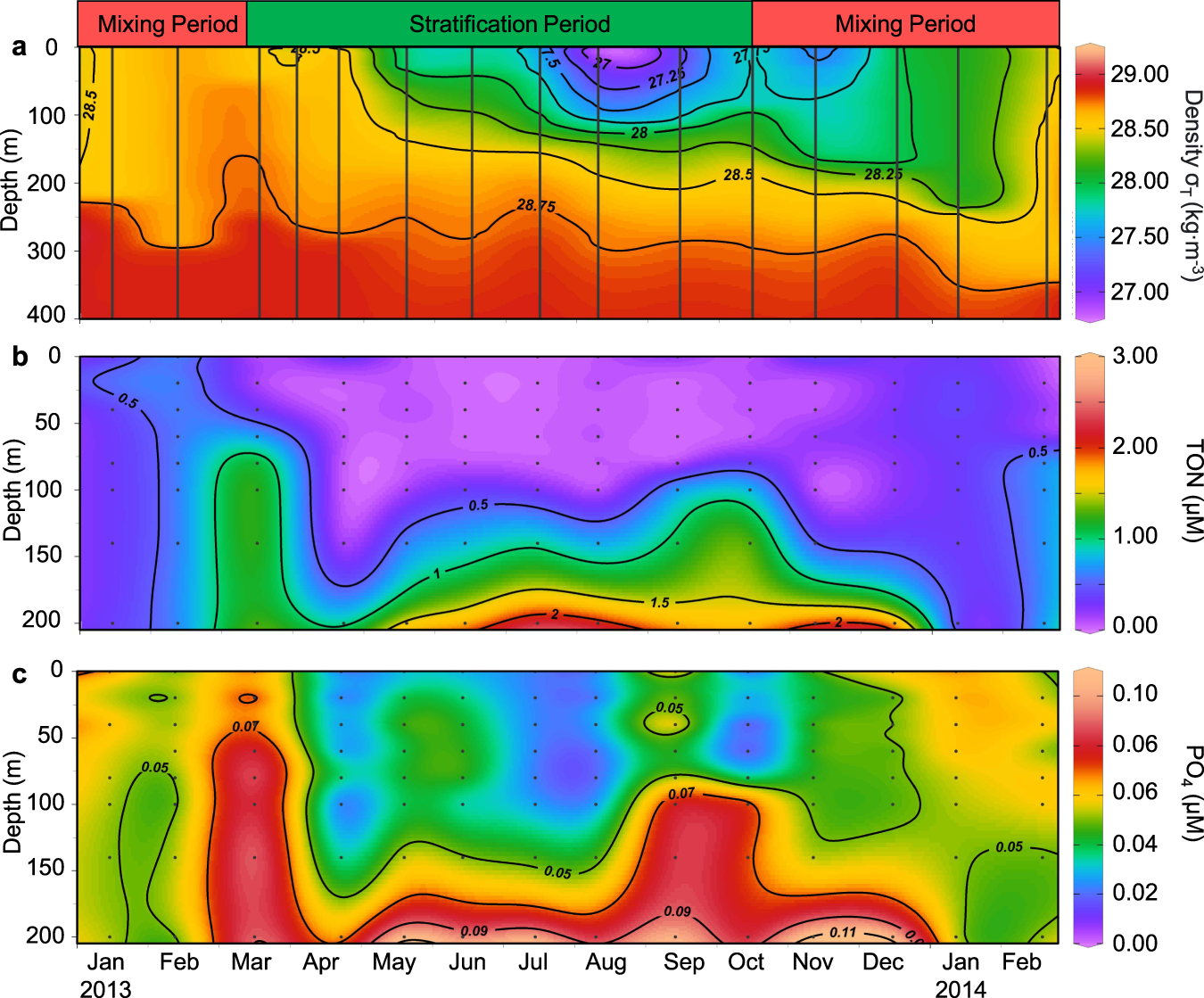

a σ density anomaly (b) Total oxidized nitrogen, NO2− + NO3− (TON), c phosphate (PO4). The contours are interpolations performed using DIVA gridding. All plots were created by Ocean Data View (http://odv.awi.de/). The data from 4 April 2013 were published previously [37] and are shown here for complete presentation of the annual cycle.
