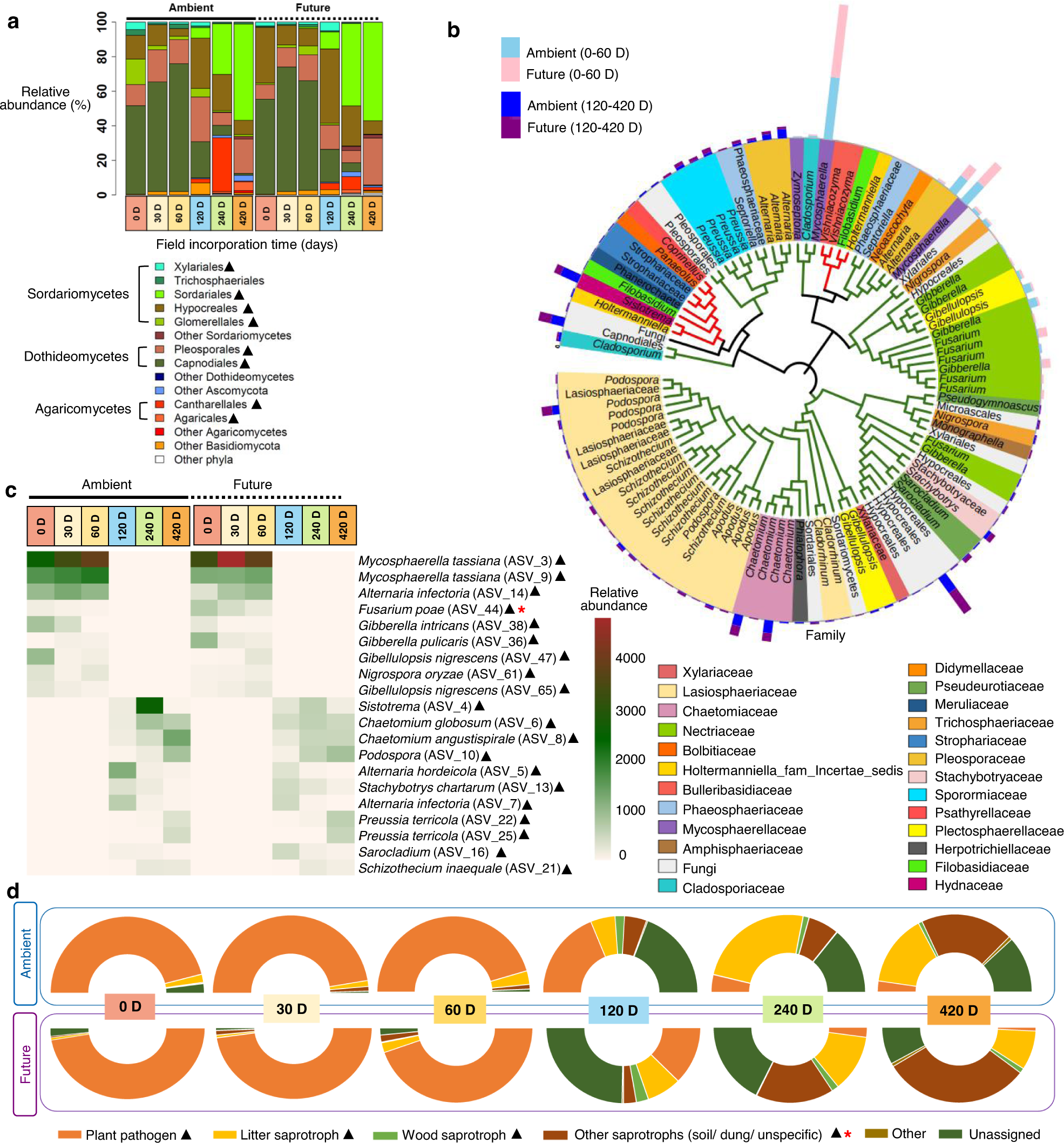

Fig. 4: The composition of fungal communities colonizing wheat straw over 420 days under ambient and future climate regimes. | The ISME Journal

Fig. 4: The composition of fungal communities colonizing wheat straw over 420 days under ambient and future climate regimes.

From: Future climate conditions accelerate wheat straw decomposition alongside altered microbial community composition, assembly patterns, and interaction networks

Fig. 4

a Order level taxonomy (>1% relative abundance). b Phylogenetic tree showing the top 100 amplicon sequences variants (ASVs) with the highest cumulative relative abundance. The taxonomic affiliation at the family level of different Phyla of each ASV is identified by the colors range in the below panel and within the tree. The clade colors showing taxonomy classification at the phylum level; green: Ascomycota, red: Basidiomycota. Microbial abundance at the early (0D–60D) and later (120D–420D) stages of decomposition are indicated in the outer stalked bars. c Heat map showing the dynamic of the top 20 ASVs assigned to genus level under both climate regimes. d The relative abundance of predicted ecological fungal traits involved in wheat straw decomposition. ▲ significant shift of the relative abundance of fungal taxa or potential ecological function over time, * significant effect of climate regime on the relative abundance of fungal taxa or predicted ecological function.
