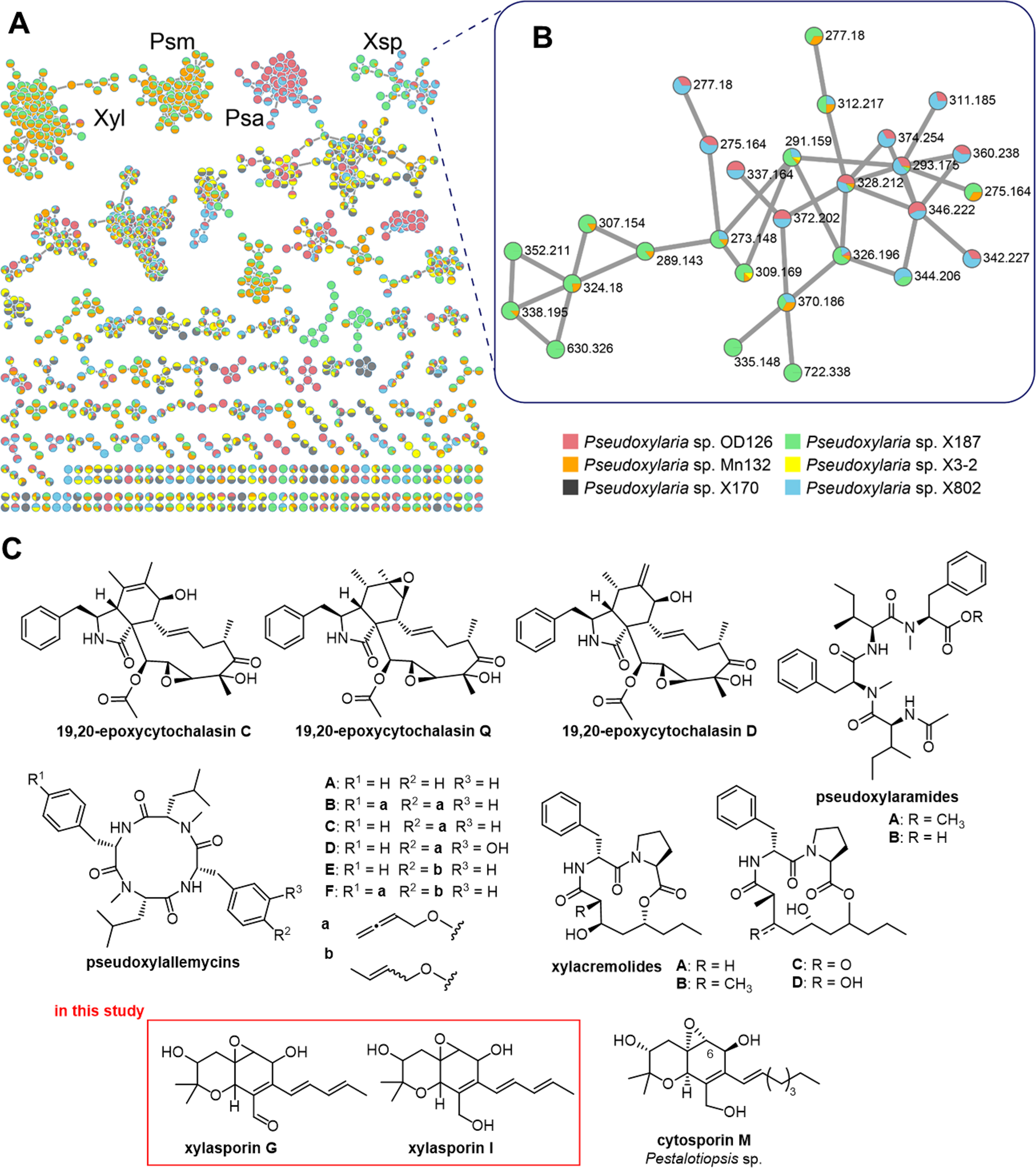

Fig. 7: Comparative metabolomic analysis of six Pseudoxylaria strains (OD126 (red), Mn132 (orange), X170 (black), X187 (green), X3.2 (yellow) and X802 (blue)).
From: Adaptations of Pseudoxylaria towards a comb-associated lifestyle in fungus-farming termite colonies
A Overview of the GNPS network. Identified metabolite clusters xylacremolides (Xyl; X187/Mn132) [32, 33], pseudoxylaramides [32] (Psa; X187/Mn132), pseudoxylallemycins (Psm; X802/OD126) [18], xylasporin/cytosporins (Xsp; X802/OD126/X187/Mn132) and cytochalasins (X802/OD126) [18]. B xylasporin/cytosporin-related cluster formed by nodes from X802 (blue), OD126 (red), X187 (green) and Mn132 (orange). C Chemical structures of natural products isolated from Pseudoxylaria species and related compounds. Red box highlights proposed structures of isolated xylasporin G and I in this study.
