Fig. 5: Examples of predicted protein structure variants in Candidatus Mycoplasma salmoninae salar related to the host genotype.
From: Co-diversification of an intestinal Mycoplasma and its salmonid host

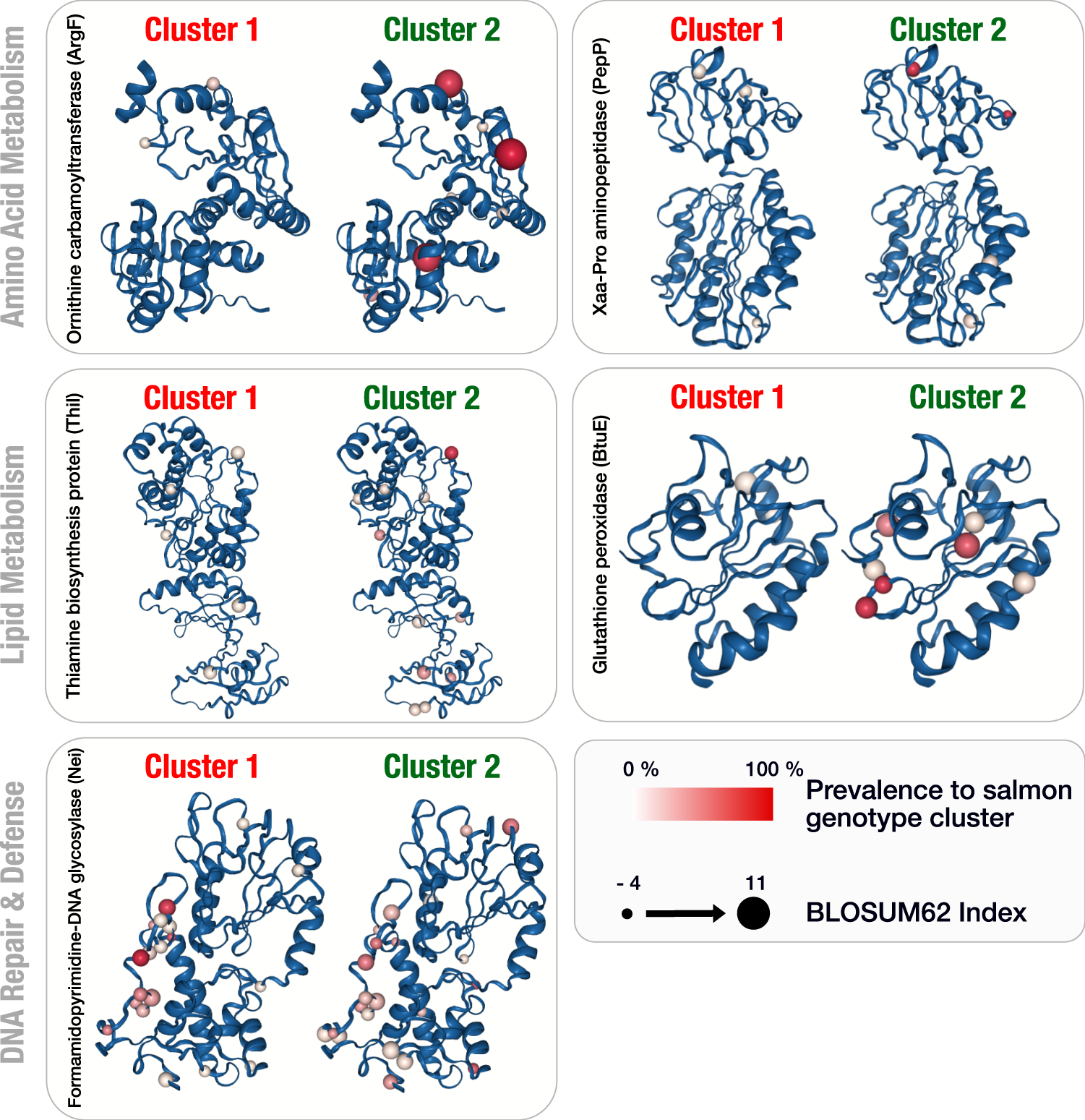

Single amino acid variants (SAAVs) on the predicted protein structures of five example genes from MSS across 19 metagenomes from the two Atlantic salmon genotypic clusters. The sphere in each predicted protein structure illustrates a SAAV, where colour indicates prevalence concerning the specific host genotype and size of the sphere indicates the interchangeability of two amino acids using BLOcks SUbstitution Matrix (BLOSUM62 index) as noted in the legend.
