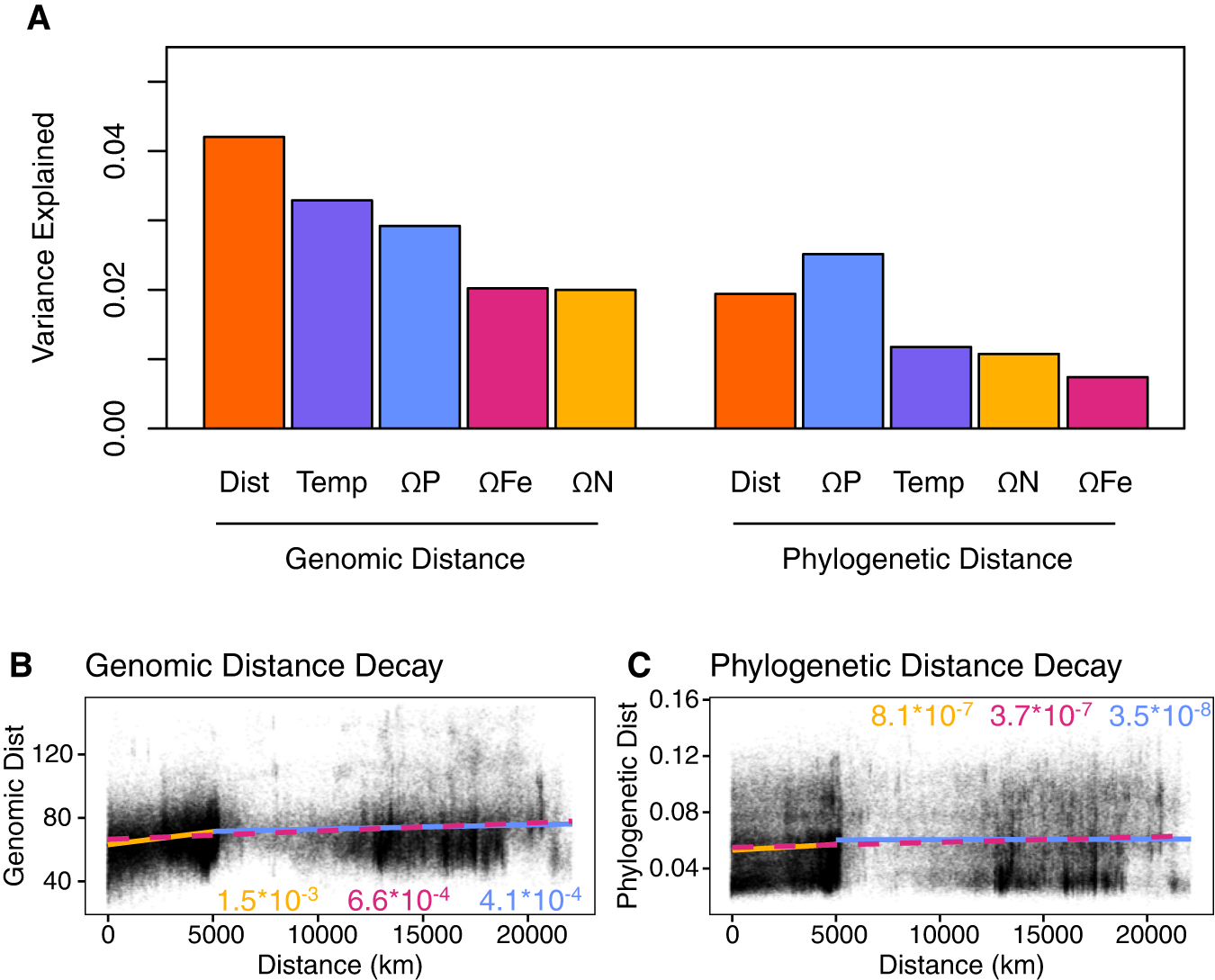

Fig. 4: Variance explained by environmental factors and distance model.
From: Global scale phylogeography of functional traits and microdiversity in Prochlorococcus
A Variance explained by environmental factors based on PERMANOVA. Variables are presented in the same order as they were used in the model. All relationships shown are significant (p value < 0.01). Distance, temperature, P-stress (ΩP), N-stress (ΩN), and Fe-stress (ΩFe) were included in the PERMANOVA. Distance decay of genomic distance (distance based on differential gene abundance) (B) and phylogenetic distance (distance based on rpoC1 consensus sequences) (C). Sample points colored based on scatterplot density. Overall linear fit (red and dashed), within sampling transect linear fit (yellow), and between sampling transects linear fit (blue). Slopes of fits shown within figure.
