Fig. 5: Selected key metabolic pathways in the newly cultured marine Nitrospirales and N. marina-Nb-295.

From: Cultivation and genomic characterization of novel and ubiquitous marine nitrite-oxidizing bacteria from the Nitrospirales

Fig. 5

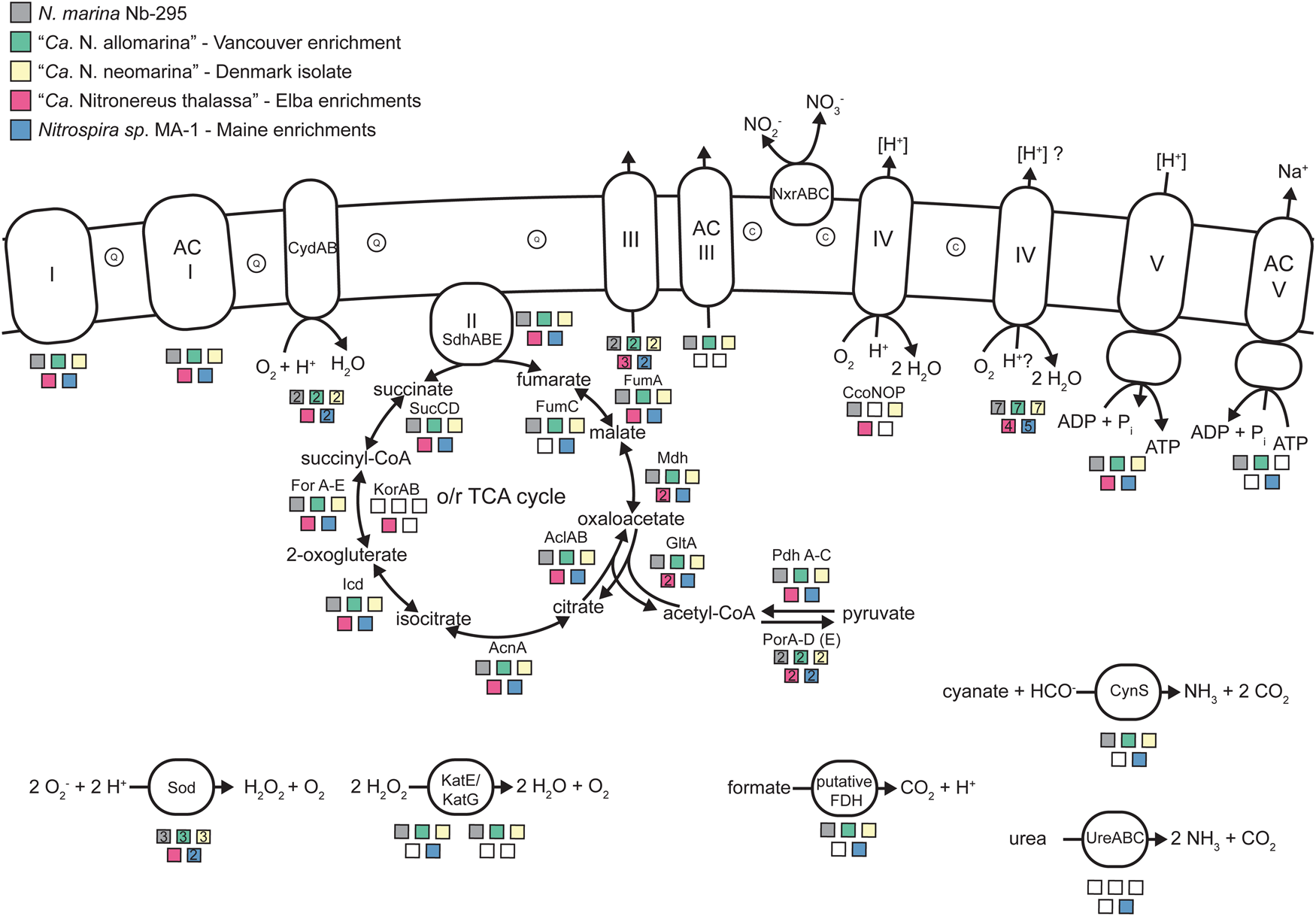

Schematic illustration of the genetic inventory for the membrane-bound electron transport chain, the oxidative and reductive TCA cycles, and other selected pathways in the newly cultivated Nitrospirales and N. marina Nb-295. The colored squares indicate the presence of the genes in the respective genomes, with numbers indicating gene copy numbers if more than one copy is present. Please refer to Table S6 for a complete list of gene abbreviations and details of the gene annotations. Q quinone, C c-type cytochrome, AC alternative complex, CcoNOP cyt. cbb3 terminal oxidase, o/r TCA cycle oxidative and reductive tricarboxylic acid cycle. Roman numbers indicate the respiratory chain complexes.
