Fig. 2: Haploblock resolution of GENCODE features.

From: Application of long-read sequencing to elucidate complex pharmacogenomic regions: a proof of principle

Fig. 2

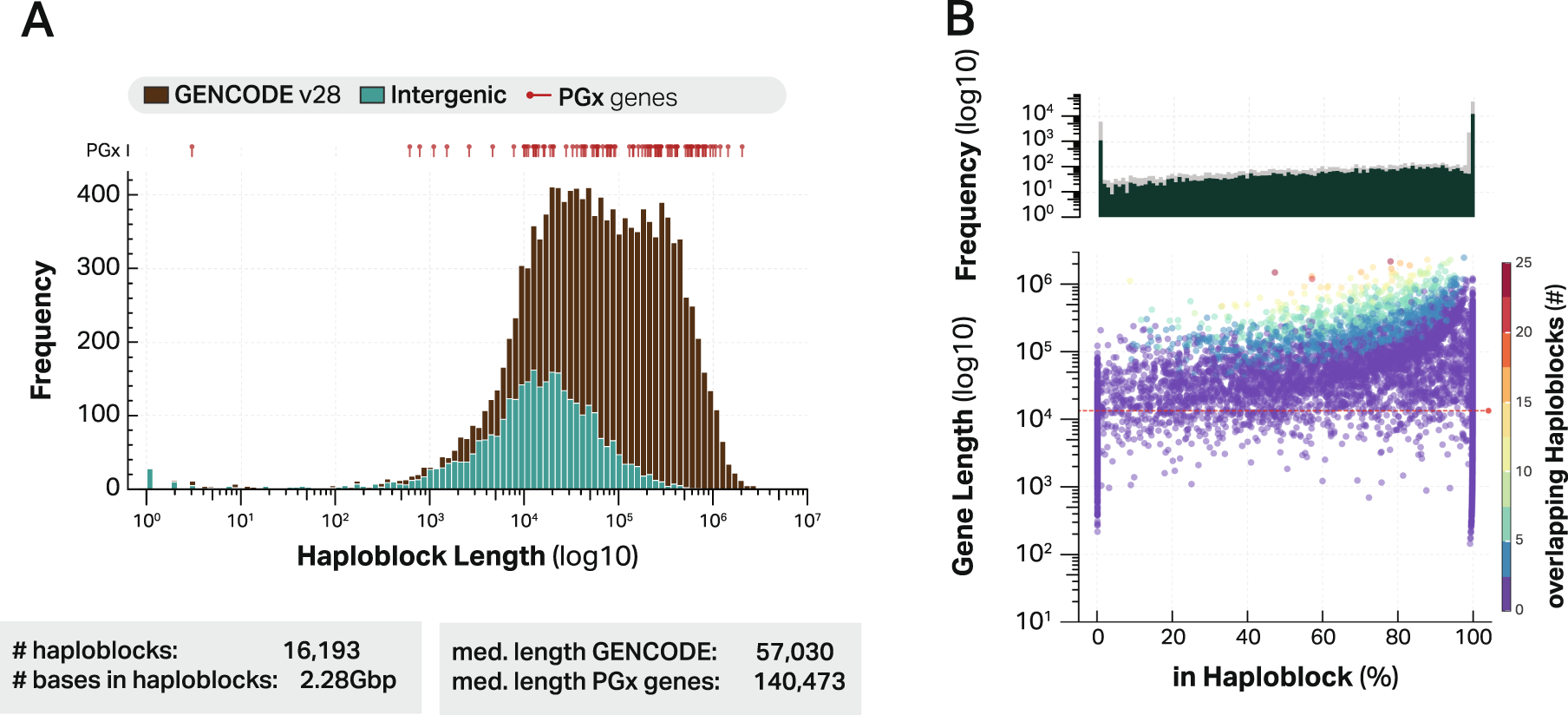

A haploblock length distribution stratified by Gencode features and intergenic regions, overlap with pharmacogenes is highlighted in red. B For each protein coding feature the percentage that were resolved into haploblocks compared to the feature length. The red line reflects the mean read length. The majority of haploblocks are larger than the mean read length, indicating that not read length but the number of heterozygous variants is decisive for the length of a haploblock.
