Fig. 1: PET parametric images.

From: Excitatory–inhibitory balance within EEG microstates and resting-state fMRI networks: assessed via simultaneous trimodal PET–MR–EEG imaging

Fig. 1

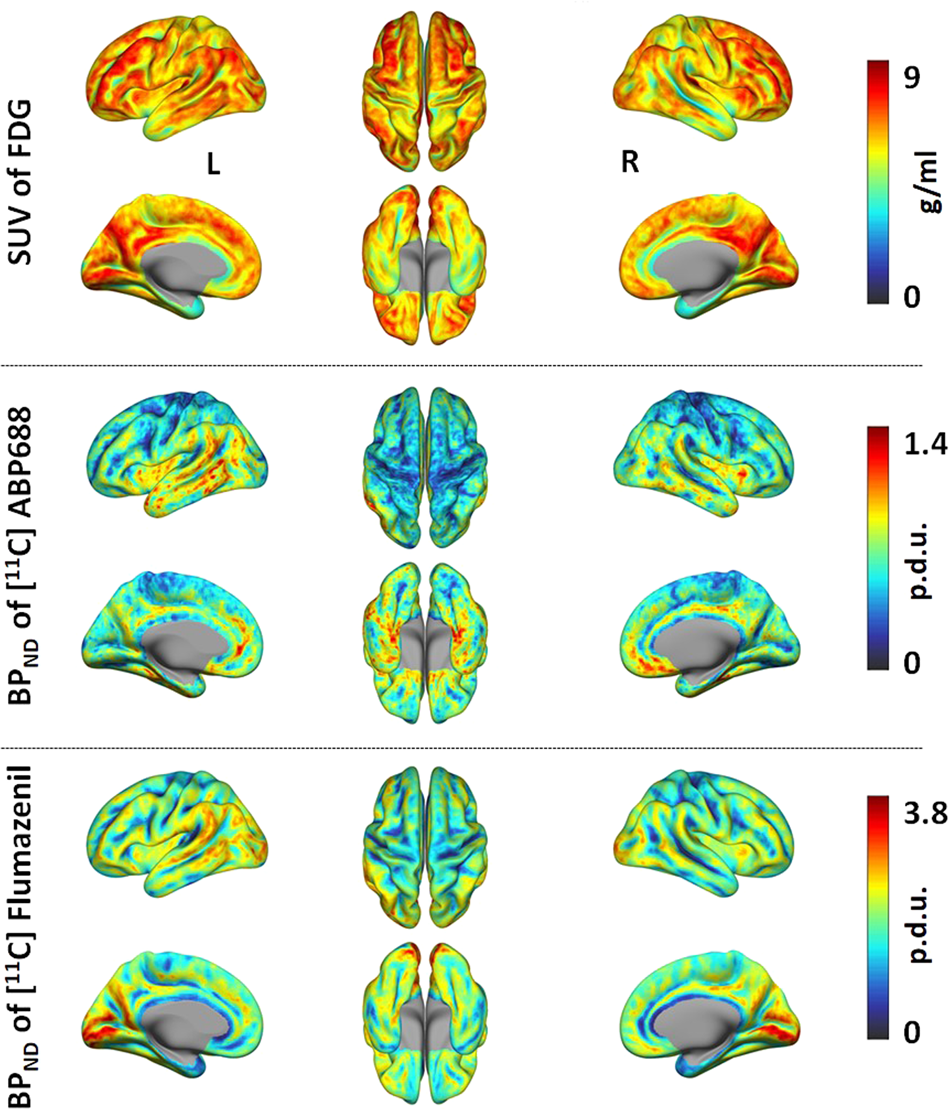

The 3D images representing the SUV of the FDG tracer are shown in the top row; the BPND of ABP and FMZ are shown in the middle and bottom rows. The SUV images show glucose consumption in g/ml, the BPND images show the distribution of the neuroreceptor availabilities for mGluR5 (middle row) and GABAA (bottom row) receptors in procedure defined unit (p.d.u.). The calculated PET parametric images, averaged across all subjects in each study, are presented. The left, superior and right views are shown in the upper rows and left medial, inferior and right medial views are shown in the lower rows of each parametric images.
