Fig. 2: Haloperidol and MDL-100,907 dose-occupancy curves. | Translational Psychiatry

Fig. 2: Haloperidol and MDL-100,907 dose-occupancy curves.

From: Effect of 5-HT2A receptor antagonism on levels of D2/3 receptor occupancy and adverse behavioral side-effects induced by haloperidol: a SPECT imaging study in the rat

Fig. 2

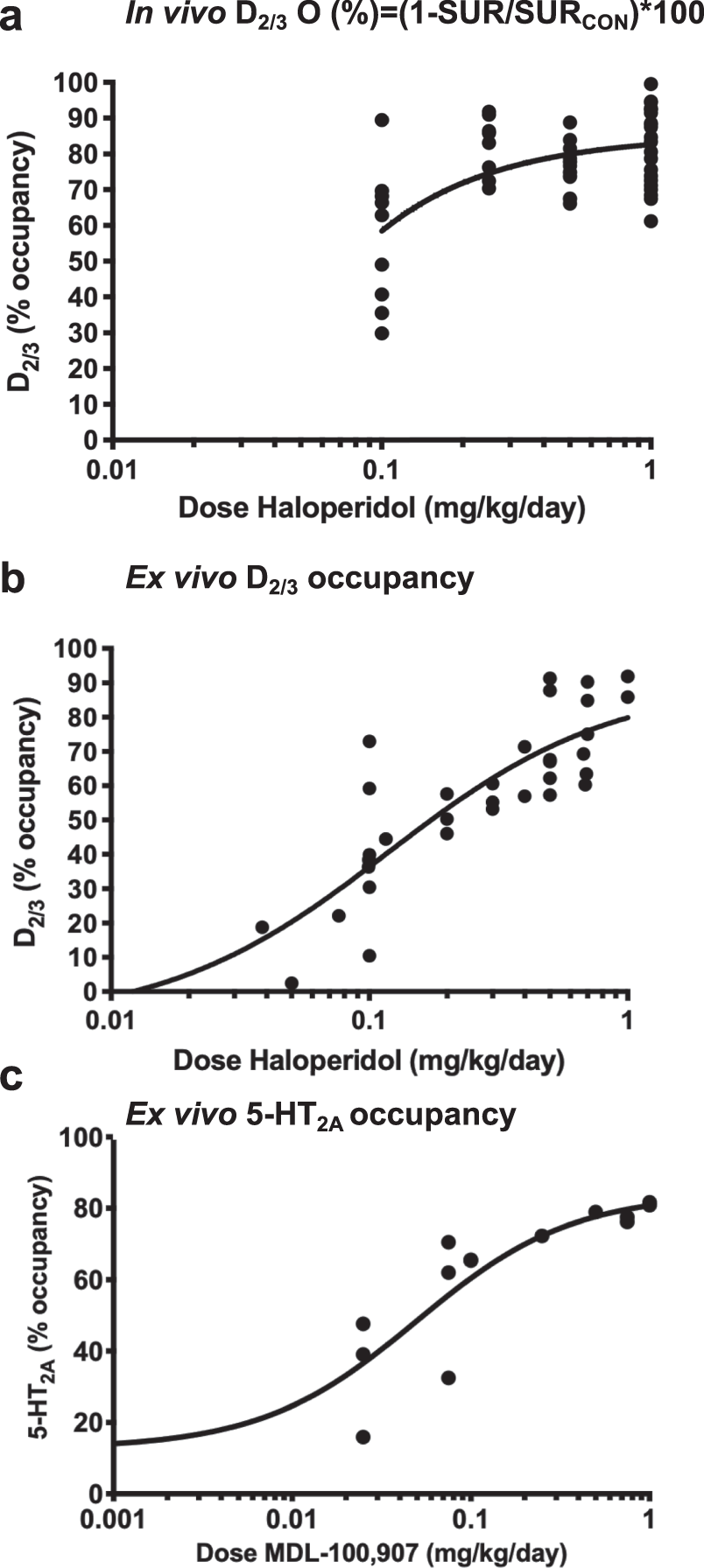

Fig. 2a and 2b shows the occupancy of the D2/3R in the striatum by various doses of haloperidol estimated in vivo and ex vivo, respectively. The equation used to calculate the occupancy is shown above Fig. 2a. Fig. 2c shows the occupancy of 5-HT2AR in the frontal cortex of rats by various doses of MDL-100,907, estimated ex vivo.
