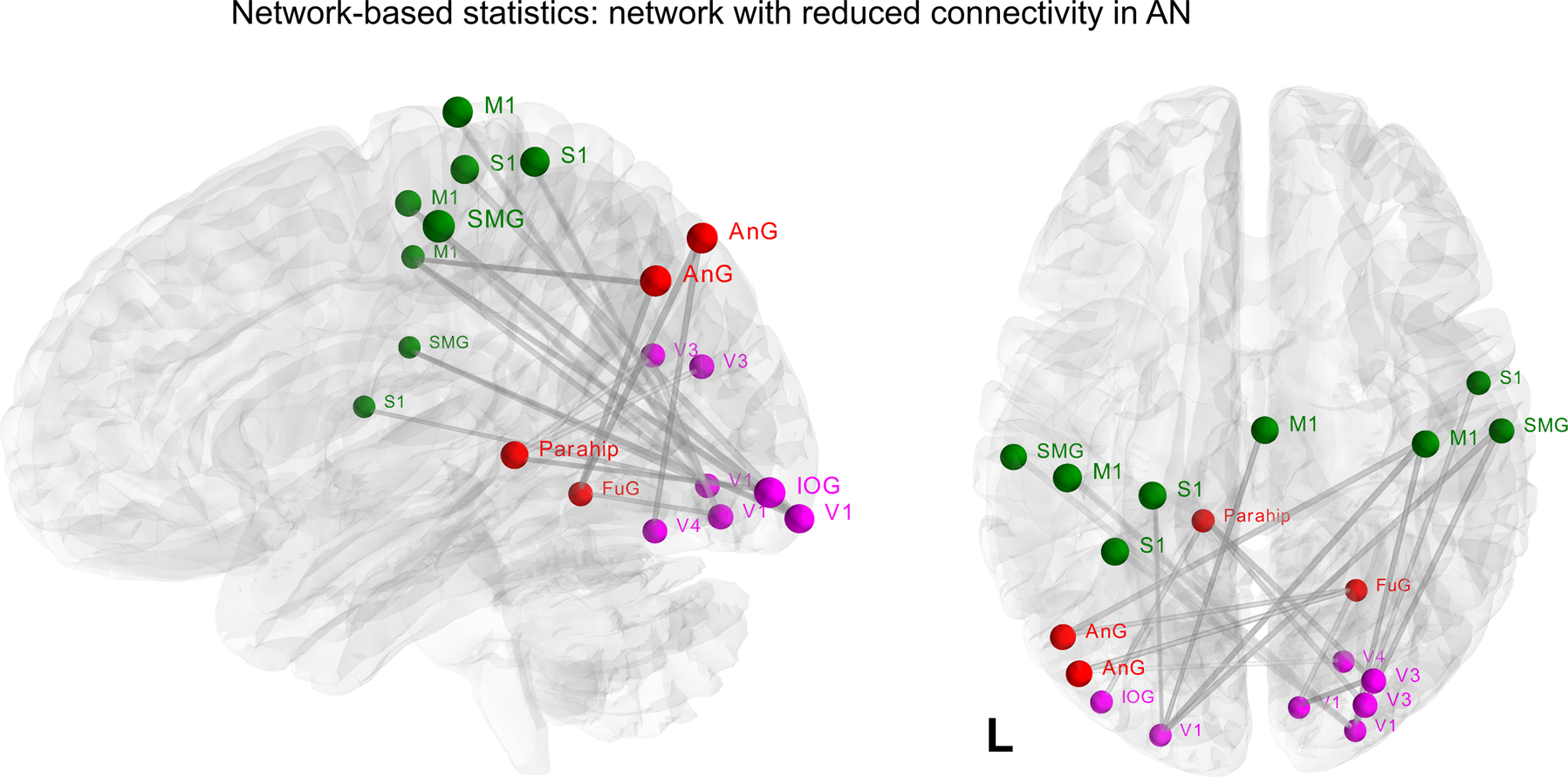

Fig. 3: Group comparisons in functional connectivity matrices using Network-Based statistics (NBS).
From: Cortical thinning and associated connectivity changes in patients with anorexia nervosa
The depicted component shows nodes with significantly (p < 0.01 corrected) reduced connectivity in AN patients compared to HC. These connections formed a single connected network with 19 nodes and 18 egdes. Nodes are color-coded according to the cerebral network where they belong to. Sensorimotor network (green), default-mode network (red) and visual network (pink). Coordinates are shown in Supplementary Table S1. Abbreviations: M1, primary motor cortex; S1, primary sensory cortex; SMG, supramarginal gyrus; Ang, angular gyrus; FuG, fusiform gyrus; Parahip, parahippocampus; V1, primary visual cortex; V4, visual area 4; IOG, inferior occipital gyrus.
