Fig. 8: The figure shows structural and functional brain changes associated with gene polymorphisms in patients with ADHD. | Translational Psychiatry

Fig. 8: The figure shows structural and functional brain changes associated with gene polymorphisms in patients with ADHD.

From: Genetic variations influence brain changes in patients with attention-deficit hyperactivity disorder

Fig. 8

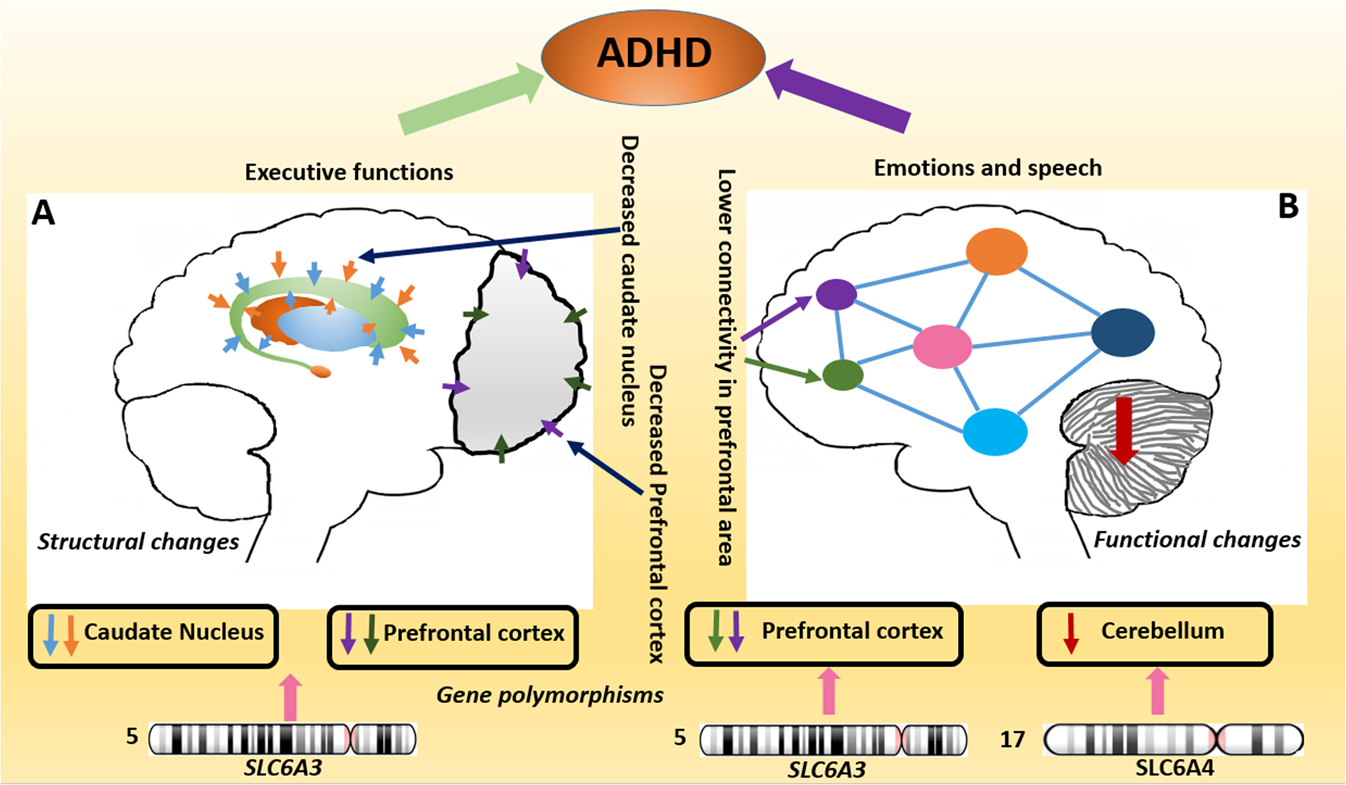

A SLC6A3 polymorphisms are associated with lower caudate nucleus volume and prefrontal cortex in patients with ADHD. B SLC6A3 and SLC6A4 polymorphisms associated with lower functional activity in the prefrontal cortex and cerebellum in the brain of ADHD (Figure inspired from the manuscript by Tripp G, et al., 2009188).
