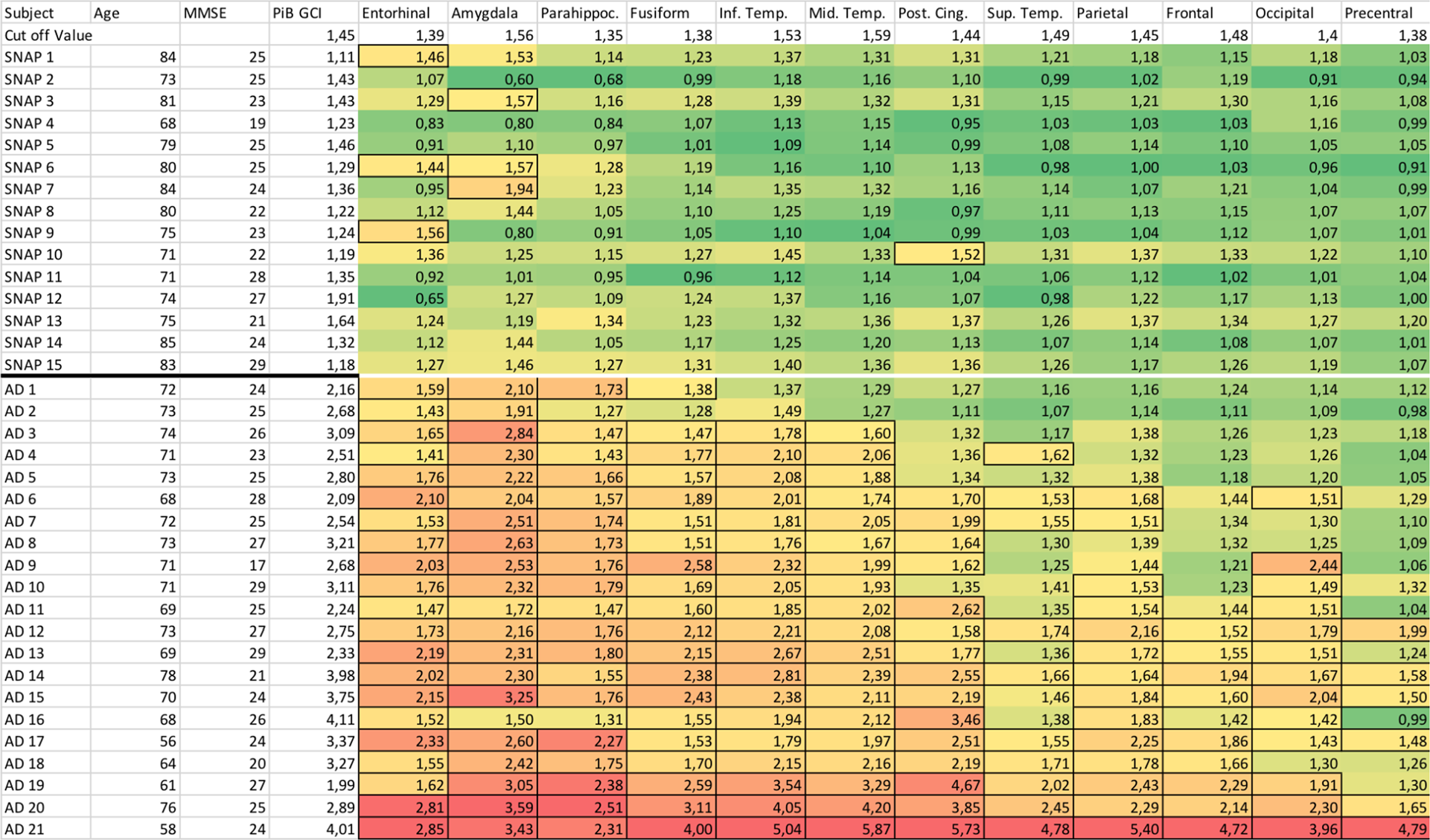

Fig. 1: Individual tau PET imaging SUVr (mean of the left and right sides) for each SNAP and AD patient in each VOI. | Translational Psychiatry

Fig. 1: Individual tau PET imaging SUVr (mean of the left and right sides) for each SNAP and AD patient in each VOI.

From: Distinct amyloid and tau PET signatures are associated with diverging clinical and imaging trajectories in patients with amnestic syndrome of the hippocampal type

Fig. 1

Green boxes correspond to the lowest values and red boxes to the highest values. The boxes are framed when the SUVr is above the cut-off value defined from our control group. MMSE, Mini-mental State Examination; GCI, global cortical index; Parahippoc, parahippocampal gyri; Inf. Temp., Inferior temporal gyri; Mid.Temp., Middle temporal gyri; Post. Cing., posterior cingulate; Sup. Temp., Superior temporal gyri.
