Fig. 5: Evolution of the tau tracer binding.

From: Distinct amyloid and tau PET signatures are associated with diverging clinical and imaging trajectories in patients with amnestic syndrome of the hippocampal type

Fig. 5

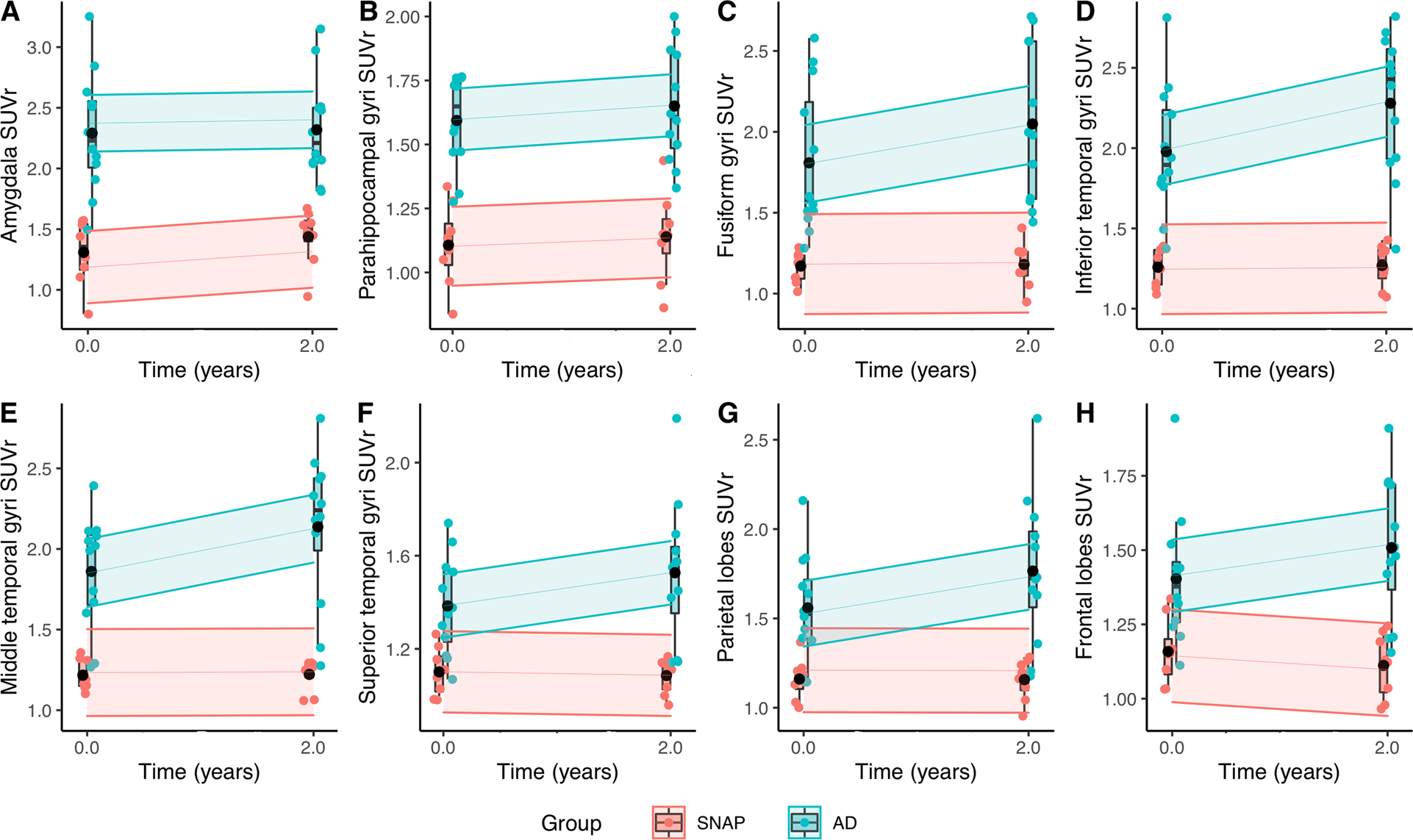

Temporal diagrams representing the evolution of the tau PET SUVr in the amygdala (A), parahippocampal gyri (B), fusiform gyri (C), inferior temporal gyri (D), middle temporal gyri (E), superior temporal gyri (F), parietal lobes (G) and frontal lobes (H) at baseline and after 2 years of follow-up in the SNAP and AD groups. The ribbons represent the 95% confidence interval. Boxplots with individual points for each group are shown. The black point represents the mean value for each group.
