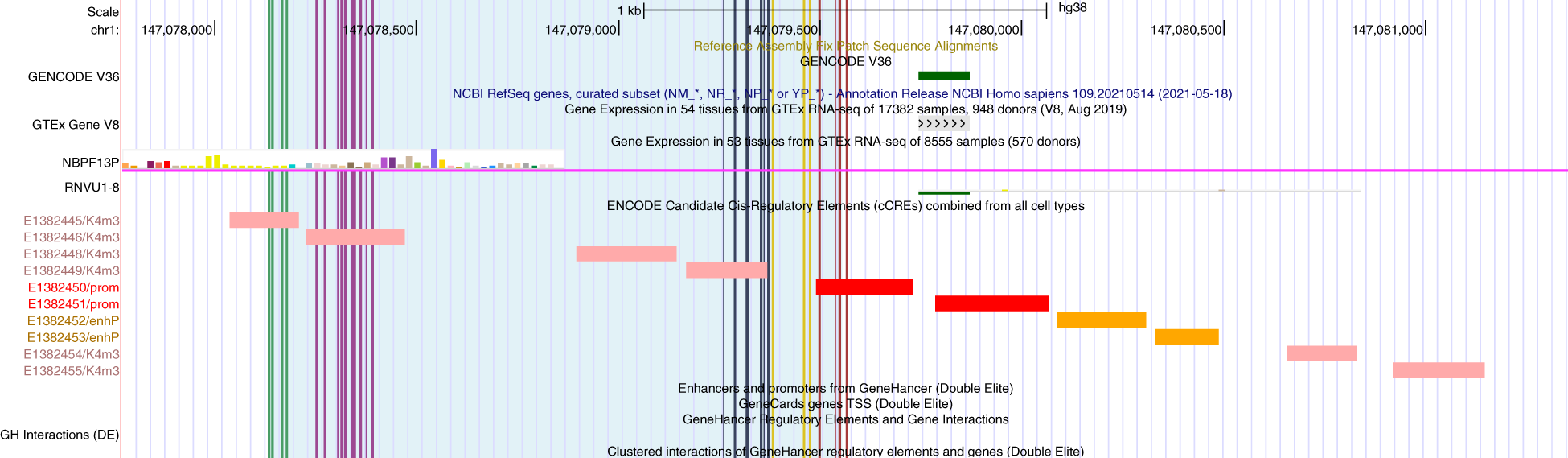

Fig. 2: Genomic features visualized relative to transcription factor binding site EH38E1382446 that was identified in the list of top 20 DMCs.

From: DNA methylation signatures in human neonatal blood following maternal antenatal corticosteroid treatment

Fig. 2

The 1432 base-pair region including 35 hypomethylated DMCs is highlighted in blue. Vertical bars indicate individual DMCs that were identified. The 15 DMCs that were identified within EH38E1382446 are highlighted in purple. 4 DMCs highlighted by green bars are mapped to DNase-H3K4me3 EH38E1382445, navy bars (7 DMCs) are mapped to DNase-H3K4me3 EH38E1382449. Yellow bars show 4 DMCs that are not annotated to any known genomic features, and red bars show 4 DMCs that are mapped to promoter E1382450. (Image obtained from UCSC genome browser for hg38, region chr1:146,956,350-147,200,349).
