Fig. 5: Mef2c and Calb2 display unique patterns of regulation. | Translational Psychiatry

Fig. 5: Mef2c and Calb2 display unique patterns of regulation.

From: Identification of activity-induced Egr3-dependent genes reveals genes associated with DNA damage response and schizophrenia

Fig. 5: Mef2c and Calb2 display unique patterns of regulation.

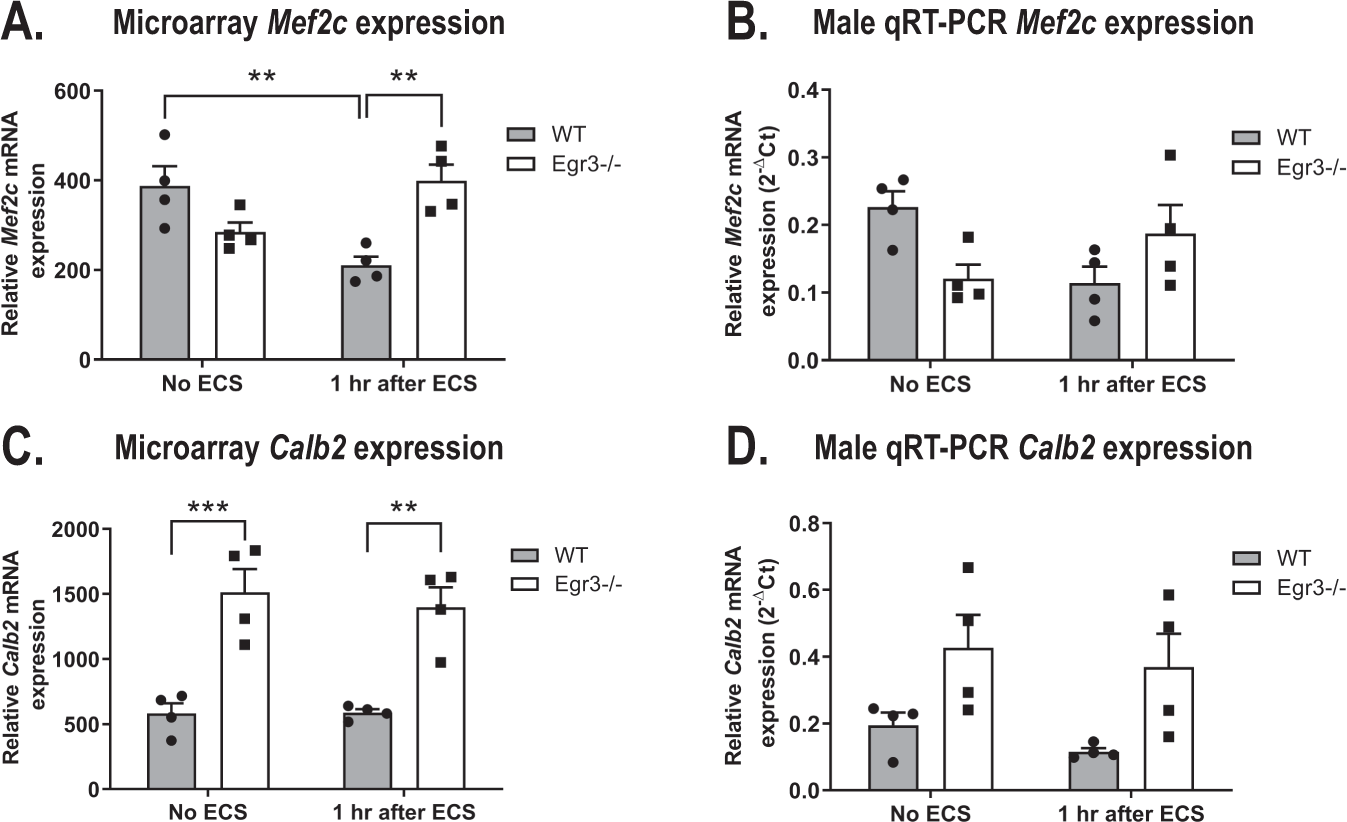

Microarray analysis results (A, C) and follow-up qRT-PCR results in males (B, D) for schizophrenia associated gene Mef2c (A, B) and Calb2 (C, D), genes overexpressed in schizophrenia. (n = 4 animals/group; ANOVAs were significant for each (see Table 3), p-values represent post-hoc analyses, **p < 0.01, ***p < 0.001, controlled for multiple comparisons, values represent means ± SEM).
