Fig. 5: Specific effects of irradiation and lithium treatment on hNSPCs, on gene expression, for genes linked to negative regulation of gliogenesis. | Translational Psychiatry

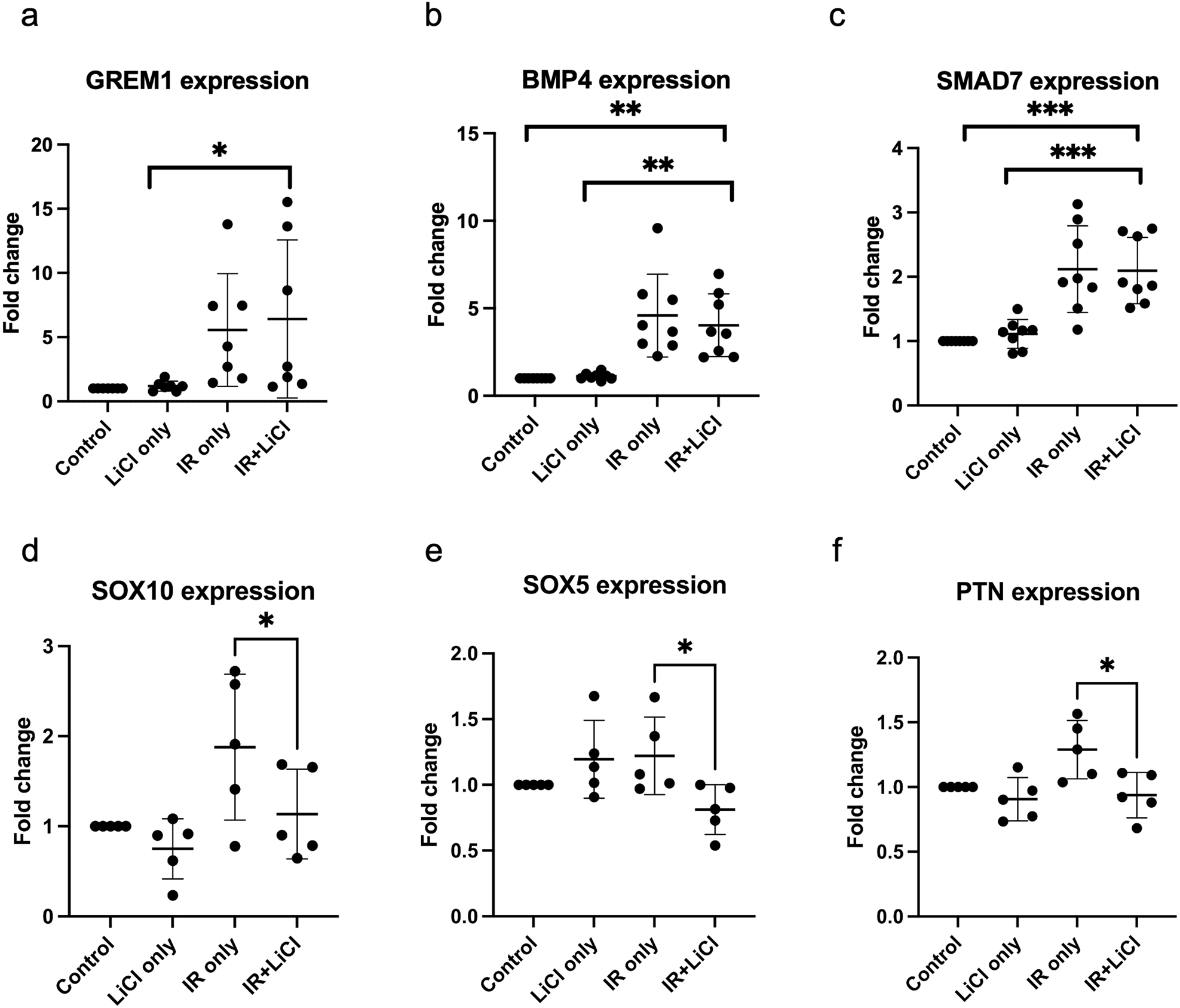

Fig. 5: Specific effects of irradiation and lithium treatment on hNSPCs, on gene expression, for genes linked to negative regulation of gliogenesis.

From: Irradiation and lithium treatment alter the global DNA methylation pattern and gene expression underlying a shift from gliogenesis towards neurogenesis in human neural progenitors

Fig. 5

Gene expression fold change compared to untreated and normalized to GAPDH, for selected genes, a GREM1 (n = 7), b BMP4 (n = 8), c SMAD7 (n = 8), d SOX10 (n = 5), e SOX5 (n = 5), f PTN (n = 5). One-way ANOVA and paired t-test, *p < 0.05, **p < 0.005. Error bars represent mean and SD.
