Fig. 2: Influential cytokines and associations with subgroups of specific symptoms at baseline.

From: Network analysis of inflammation and symptoms in recent onset schizophrenia and the influence of minocycline during a clinical trial

Fig. 2: Influential cytokines and associations with subgroups of specific symptoms at baseline.

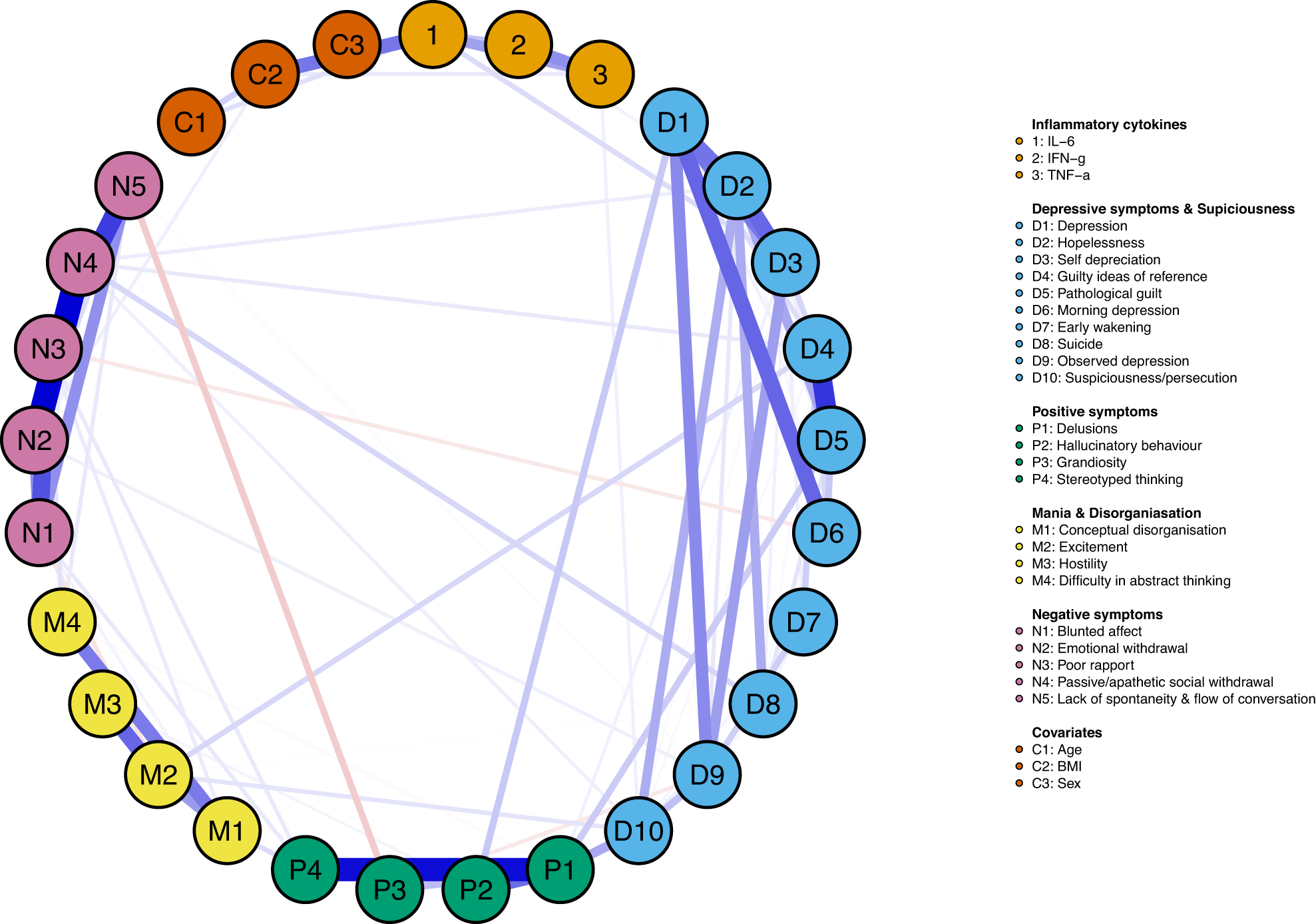

Blue edges represent positive partial correlations (conditional dependence associations), and red edges represent negative partial correlations. Thicker edges represent greater correlations. Age and BMI were identified as belonging to the pro-inflammatory cytokines community, and sex as belonging to its own. However, for ease of visual interpretation, all covariates were plotted to comprise their own community—sitting next to pro-inflammatory cytokines—in the network.
