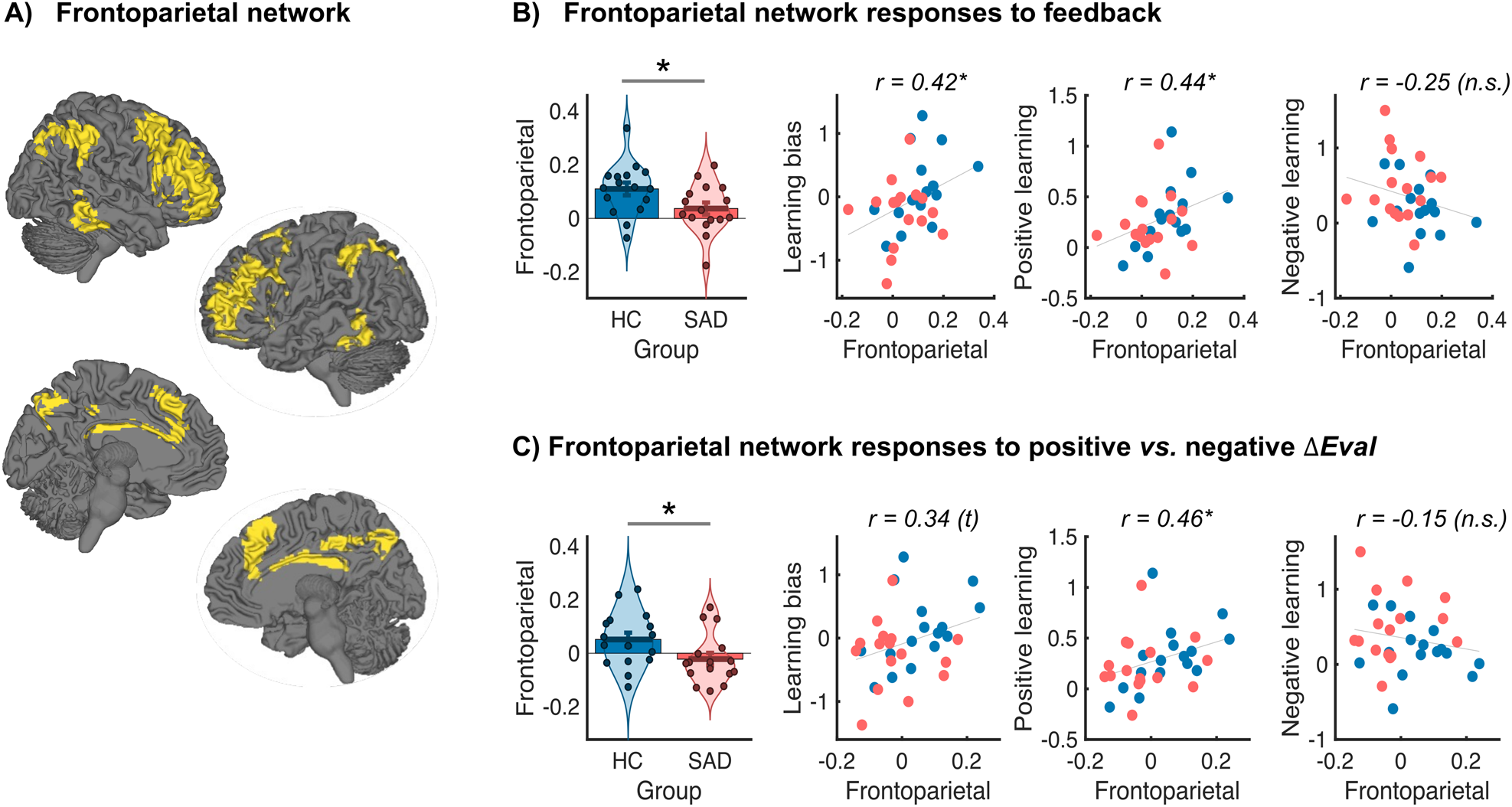

Fig. 4: Activation of the frontoparietal network to feedback and feedback valence.
From: Brain mediators of biased social learning of self-perception in social anxiety disorder
A Display (in yellow) of a canonical frontoparietal network (FPN) mask [36]. B Activation of the frontoparietal network in response to feedback overall is significantly greater in HC than in SAD and correlates with positive learning bias. C HC compared to SAD show greater modulation of the FPN by positive versus negative valence of feedback mismatch (ΔEval), and the FPN modulation by valence correlates positively with the degree of positive (but not negative) learning. The dots in the violin plots show individual participants’ data, bars show group means, and vertical lines indicate SEM.
