Fig. 2: Configural fear memory retention in the recall test seven days after acquisition training.
From: Attenuating human fear memory retention with minocycline: a randomized placebo-controlled trial

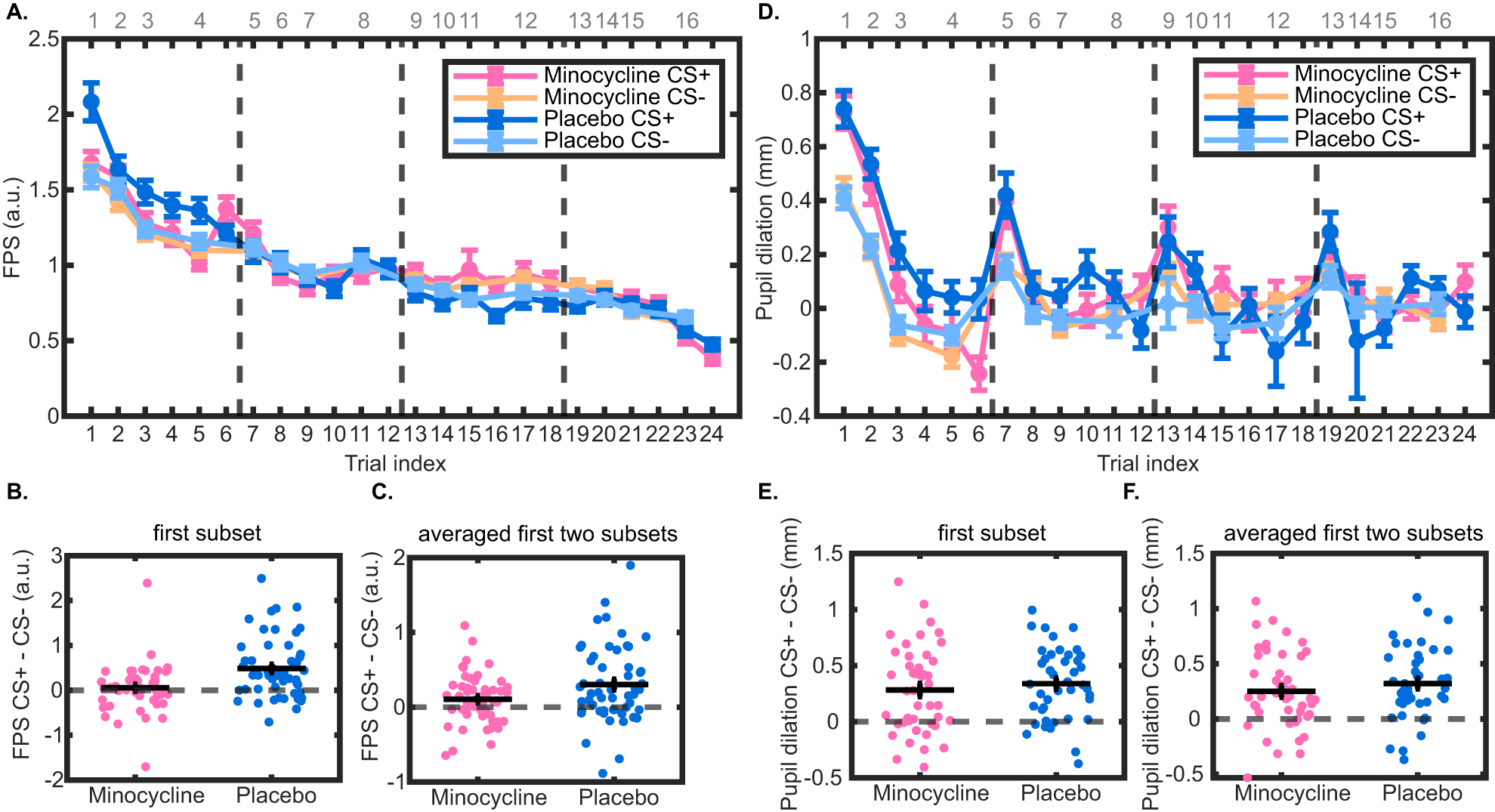

A Normalized trial-wise FPS and the averaged FPS over B the first and C the first two subsets. D Trial-wise pupil dilation and the averaged pupil dilation over E the first and F the first two subsets. “CS-” represents the averaged data over all four CS- conditions. Data shown in A and D are the group means ± SEM of each trial in each condition. Data points in the figure were generated by averaging FPS estimates across the time sequences of the semi-randomized trials in each condition of all participants. The top of the plots shows the trial indices of CS- conditions, and the bottom shows the indices of CS + . The black dashed lines separate trials into four blocks, with six trials of CS+ and four trials of averaged CS- in each block. Data shown in B, C and E, F are the group means ± SEM of the difference between CS+ and averaged CS- over all four CS- conditions.
