Fig. 6: GluN2B-containing NMDA receptor blockade does not alter facial stimulation-evoked MF-GC synaptic transmission in VPA-exposed mice.

From: Gestational valproic acid exposure enhances facial stimulation-evoked cerebellar mossy fiber-granule cell transmission via GluN2A subunit-containing NMDA receptor in offspring mice

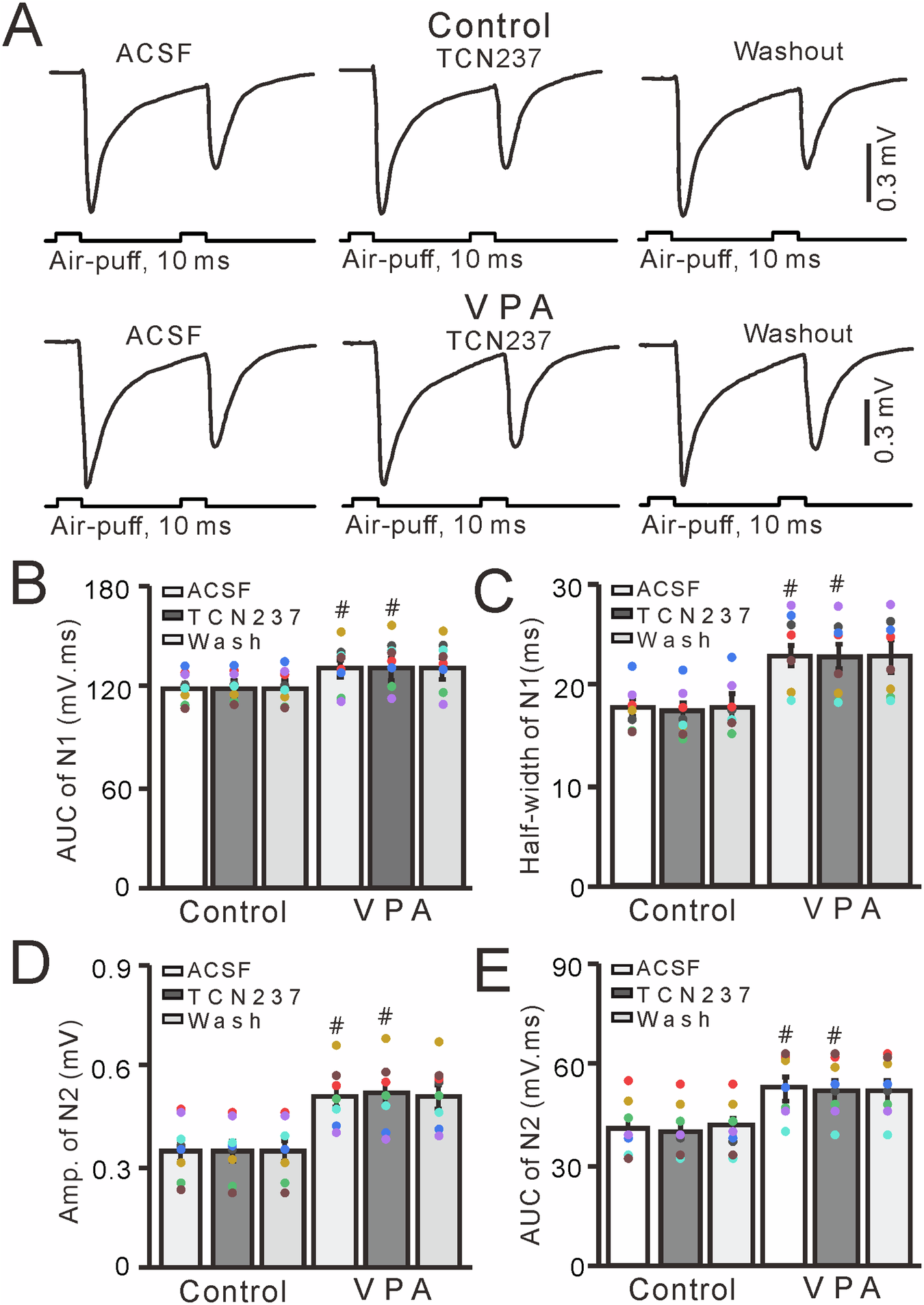

Fig. 6

A Representative traces showing that paired air-puff stimulation (10 ms, 60 psi) of the ipsilateral whisker pad evoked MF-GC synaptic transmission in control and VPA-exposed mice treated with ACSF or TCN (10 μM) or subjected to washout. Mean (±S.E.M) of the amplitude (B) and half-width (C) of N1 in mice treated with ACSF or TCN or subjected to washout. Mean (±S.E.M) of the amplitude (D) and area under the curve (E) of N2 in mice treated with ACSF or TCN or subjected to washout. n = 8 in each group. #P < 0.05, VPA versus control.
