Fig. 2: FC matrices derived from fNIRS data across three groups (from left to right: HCs, AVHh- and AVHh+, respectively).

From: Decreased Broca-left supplementary motor area connectivity underlying auditory verbal hallucination: A resting-state NIRS study

Fig. 2: FC matrices derived from fNIRS data across three groups (from left to right: HCs, AVHh- and AVHh+, respectively).

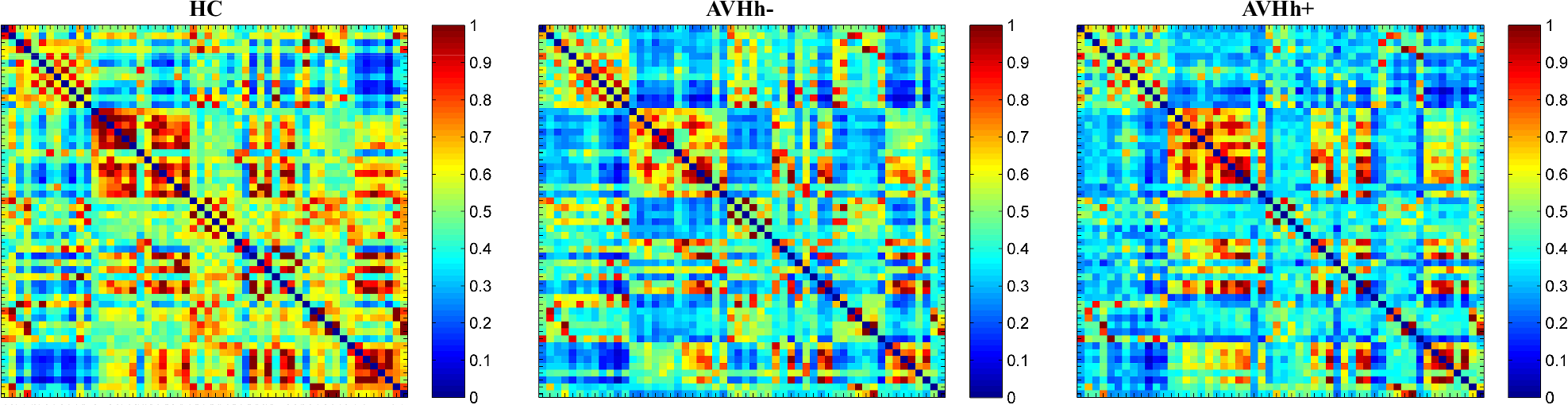

Each matrix displays correlation coefficients with Fisher's r-to-z transformation between fNIRS channels during resting state. The color bar on the right indicates FC, ranging from 0 (blue, low FC) to 1 (red, high FC), with warmer colors representing higher FC.
