Fig. 6: The network plots provide a visual summary of the relationships between acupoints and the outcomes of their combinations. | Translational Psychiatry

Fig. 6: The network plots provide a visual summary of the relationships between acupoints and the outcomes of their combinations.

From: Evaluating the potential of acupuncture for Alzheimer’s disease treatment: A meta-analysis and systematic review of mouse model studies

Fig. 6: The network plots provide a visual summary of the relationships between acupoints and the outcomes of their combinations.

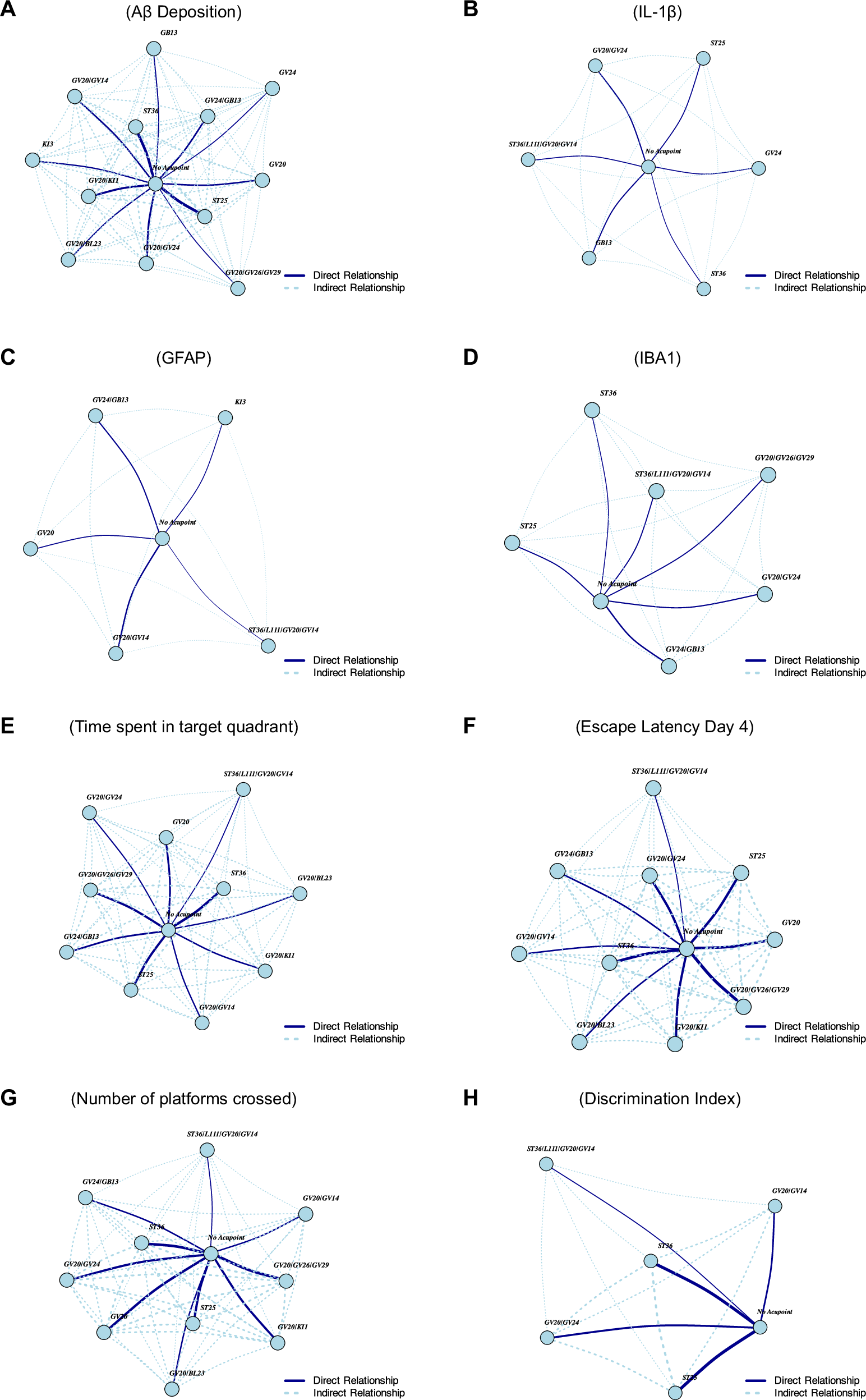

In these plots, the edge widths represent the inverse of the standard error (1/seTE), indicating the precision of estimates. A–D Aβ deposition, IL-1B, GFAP, and IBA1 levels. E–H Behavioral outcomes, including target quadrant time, escape latency, platform crossings, and discrimination Index.
