Fig. 3: Gene expression differences in pPCL. | Blood Cancer Journal

Fig. 3: Gene expression differences in pPCL.

From: Genomic analysis of primary plasma cell leukemia reveals complex structural alterations and high-risk mutational patterns

Fig. 3

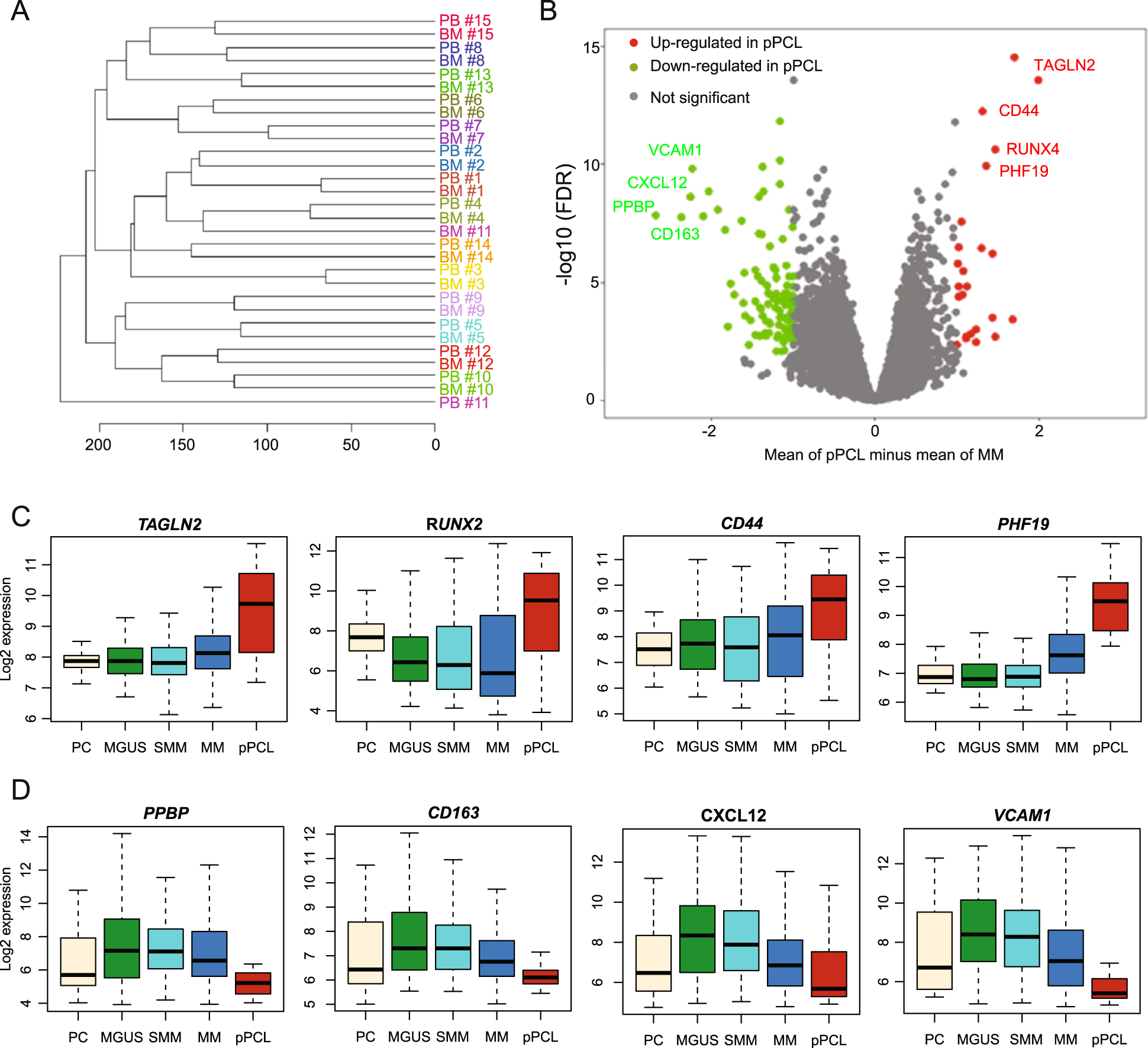

a Unsupervised clustering of matched CD138+ cells from BM aspirates and PB from the same patients (n = 15). b Gene expression profiling comparing differentially expressed genes between non-pPCL MM and pPCL with at least a twofold change (p < 0.05, FDR < 0.01). c Expression of the top four upregulated genes by MM stage and in healthy donors (HD). d The top four downregulated genes by MM stage and in HD.
