Fig. 1: Distribution of SV across the genetic subgroups of NDMM (n = 812).

From: Structural variants shape the genomic landscape and clinical outcome of multiple myeloma

Fig. 1: Distribution of SV across the genetic subgroups of NDMM (n = 812).

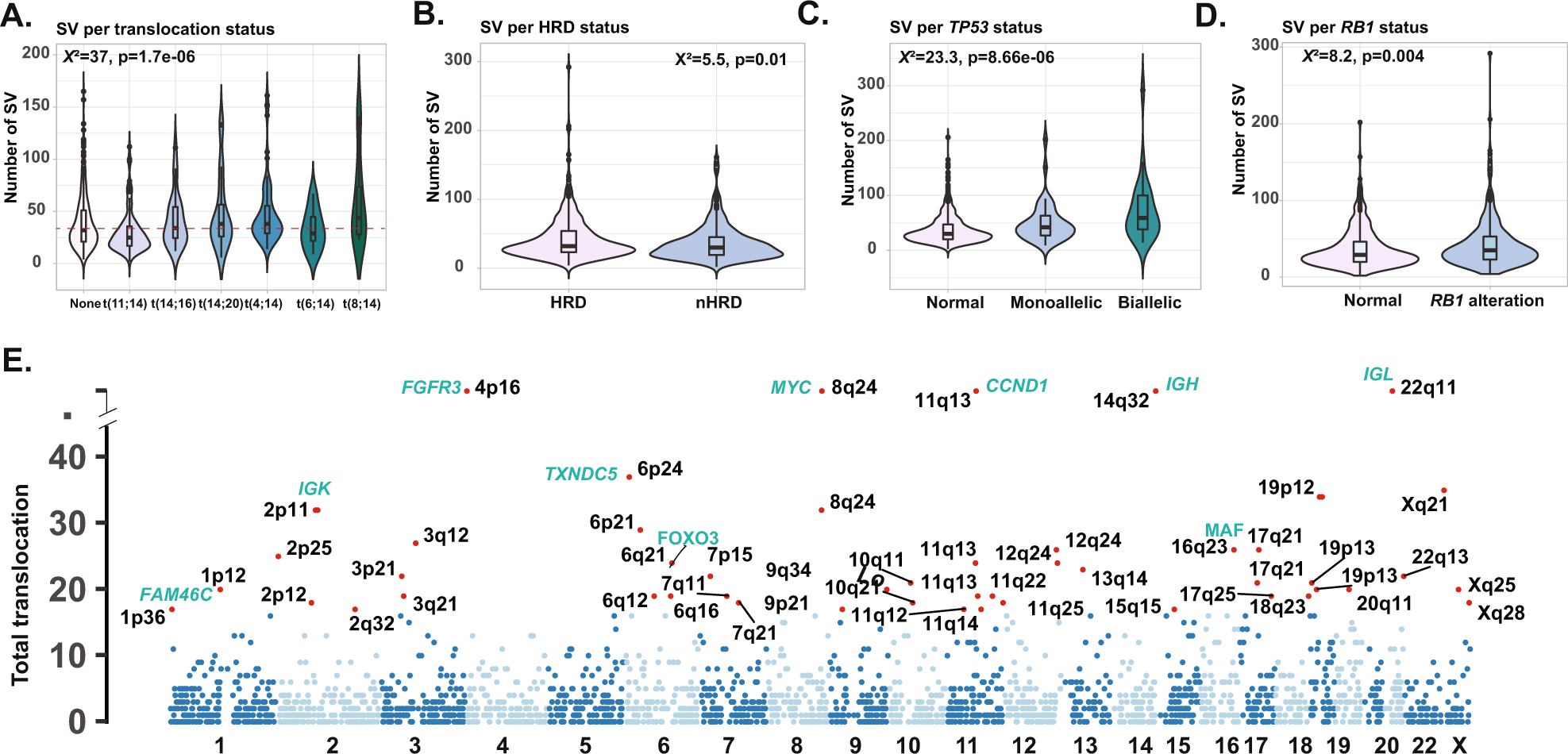

A Violin plot suggesting t(4;14) have more SVs and t(11;14) fewer SVs. B Violin plot suggesting HRD samples have fewer SVs than nHRD samples. C Violin plot suggesting there are more SV in both monoallelic and biallelic TP53 inactivated cases. D Violin plot suggesting SVs are associated with RB1 alterations. E Plot displaying the number of translocations according to their chromosomal location highlighting hotspots of interest (genes in green).
