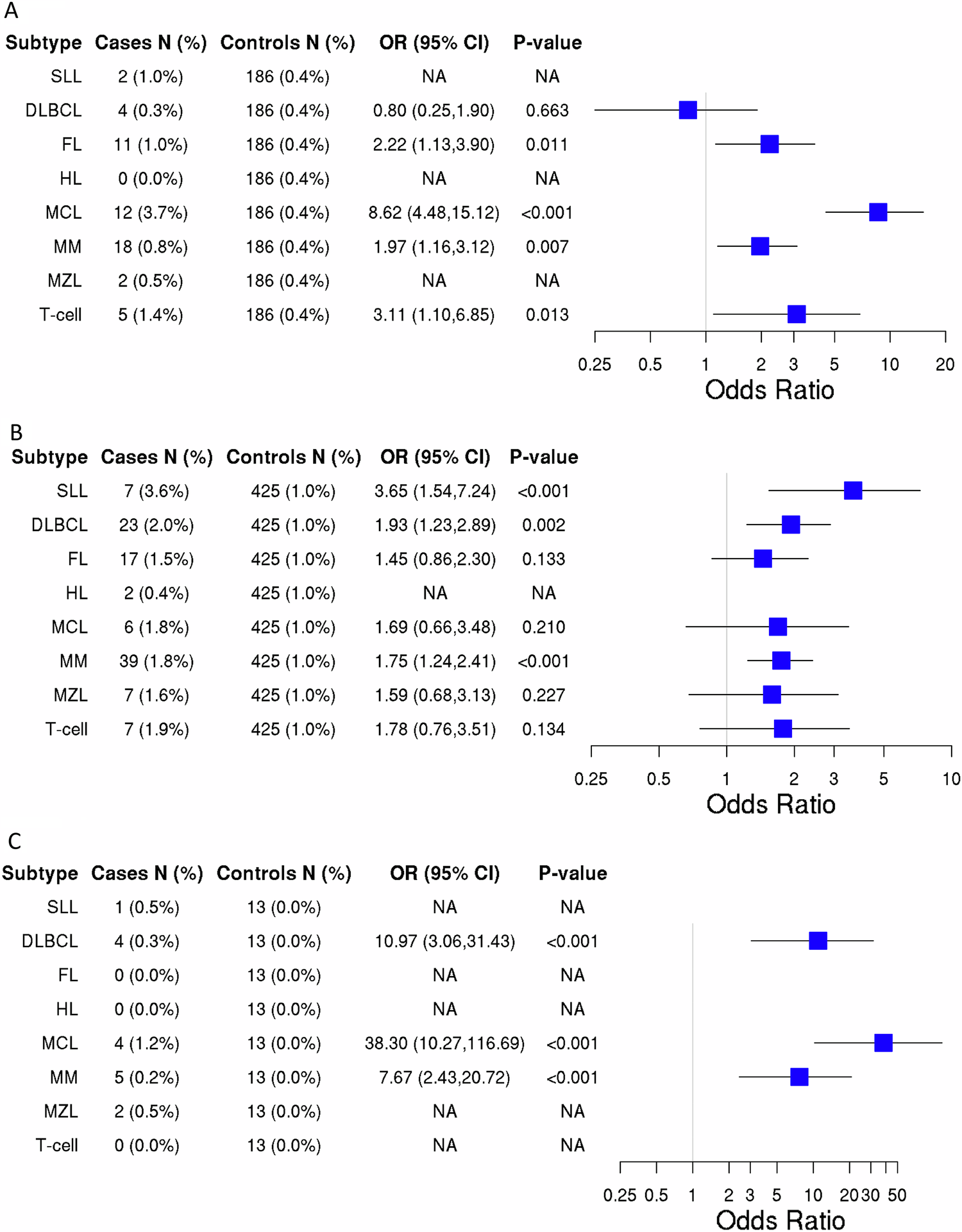

Fig. 2: Risk of lymphoid malignancy subtype by cancer predisposition gene.
From: Risk of lymphoid malignancy associated with cancer predisposition genes
Data shown for ATM (A), CHEK2 (B), and TP53 (C). Gene selected based on being significantly associated with at least one lymphoid subtype. OR Odds Ratio, CI Confidence Interval. Estimates were adjusted for age and sex. NA denotes not applicable (too few events [<4] to calculate a stable odds ratio). SLL small lymphocytic lymphoma, DLBCL diffuse large B-cell lymphoma, FL follicular lymphoma, HL Hodgkin’s lymphoma, MCL mantle cell lymphoma, MM multiple myeloma, MZL marginal zone lymphoma.
