Fig. 2: Cellular expression of potential cell surface and secreted biomarkers in the BM microenvironment. | Blood Cancer Journal

Fig. 2: Cellular expression of potential cell surface and secreted biomarkers in the BM microenvironment.

From: Defining the proteome of bone marrow plasma in multiple myeloma and monoclonal gammopathy of undetermined significance

Fig. 2: Cellular expression of potential cell surface and secreted biomarkers in the BM microenvironment.

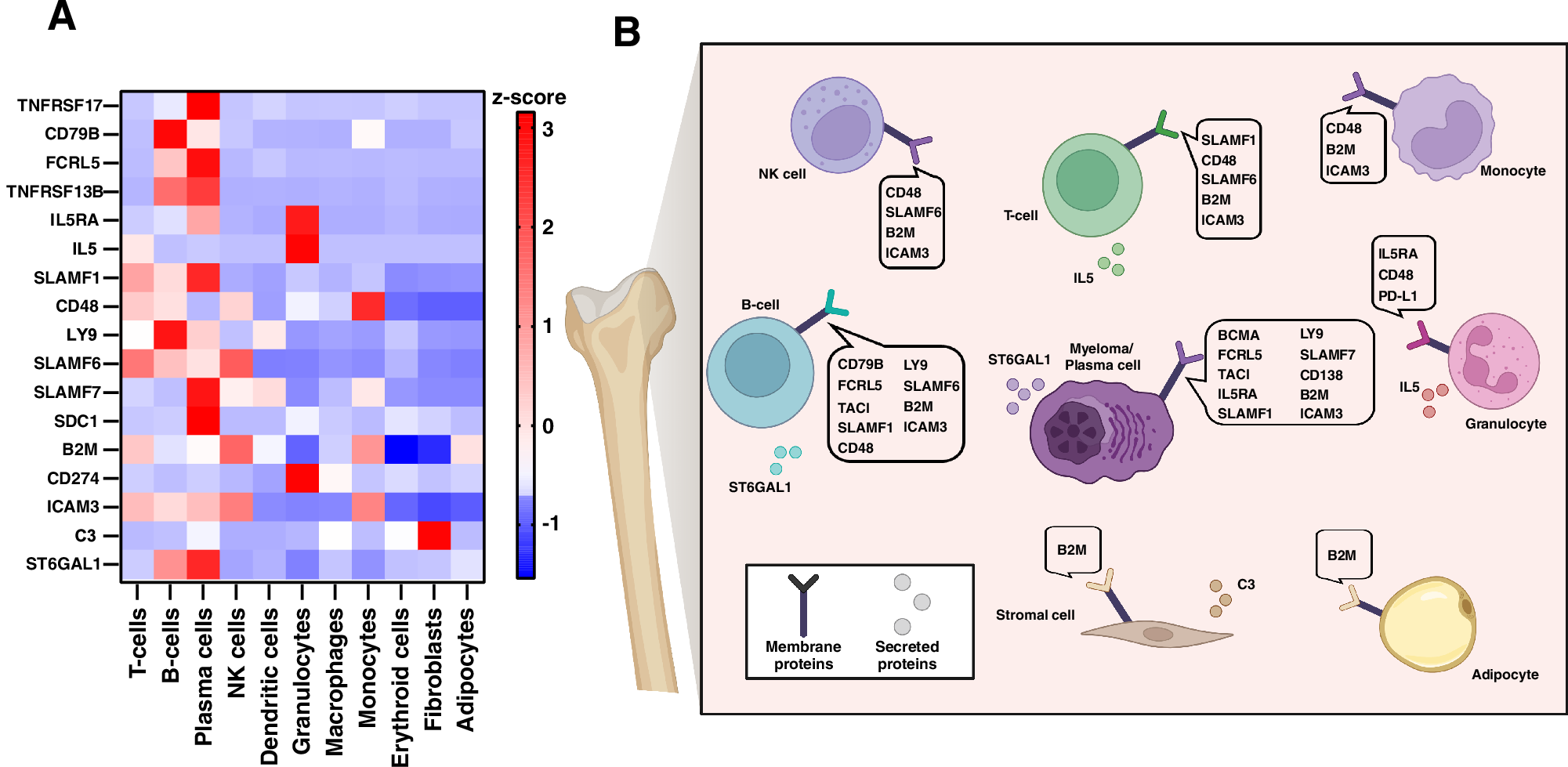

A Heatmap showing RNA expression of selected biomarkers across cell types in the BM microenvironment. Expression levels are color-coded by z-score; gene symbols are indicated. B Schematic illustration of the cellular localization of selected biomarkers within the BM microenvironment.
