Fig. 5: Monocyte reconstitution after omidubicel transplantation. | Bone Marrow Transplantation

Fig. 5: Monocyte reconstitution after omidubicel transplantation.

From: Lymphoid and myeloid immune cell reconstitution after nicotinamide-expanded cord blood transplantation

Fig. 5: Monocyte reconstitution after omidubicel transplantation.

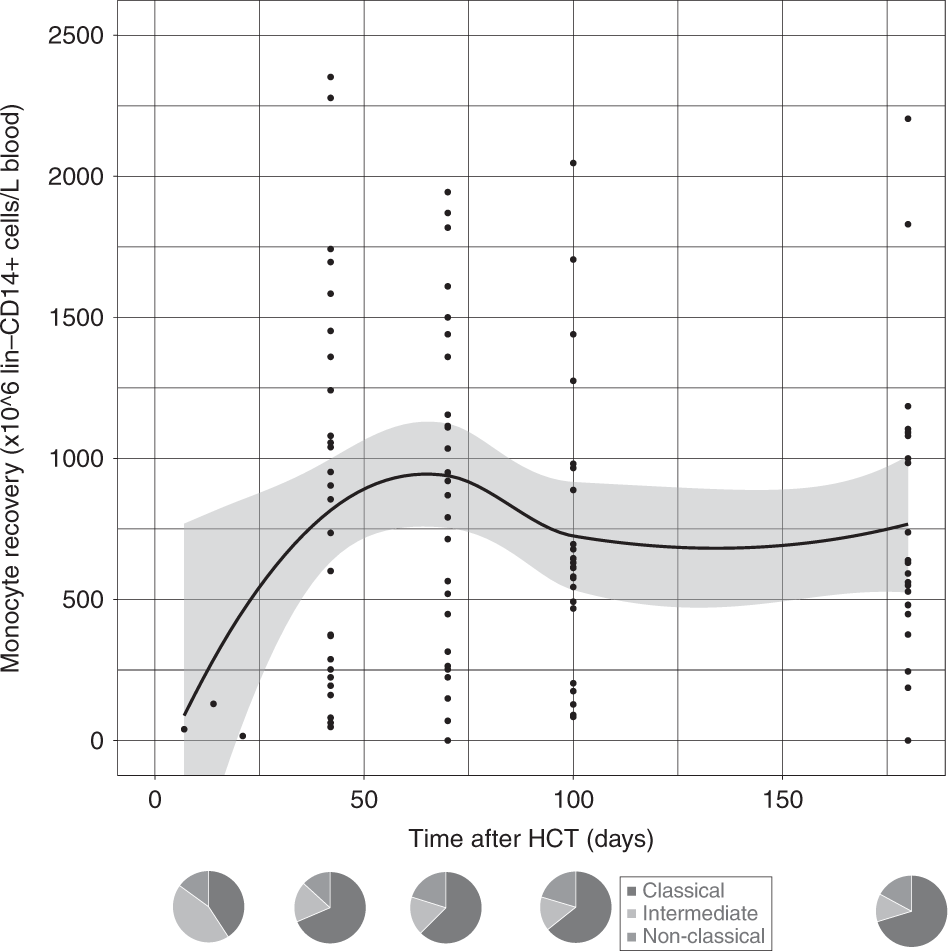

(Upper) Smoothened LOESS-curve with 95% confidence interval (gray area), with dots showing the data points, for absolute monocyte counts following omidubicel transplantation. Each dot represents a single data point for a single patient. (Lower) Pie-charts of monocyte subsets as percentages of total monocytes; classical, intermediate, and non-classical monocytes, at 7–14, 21, 42, 70, and 180 days after transplantation.
