Fig. 5
From: PTPN11 in cartilage development, adult homeostasis, and diseases

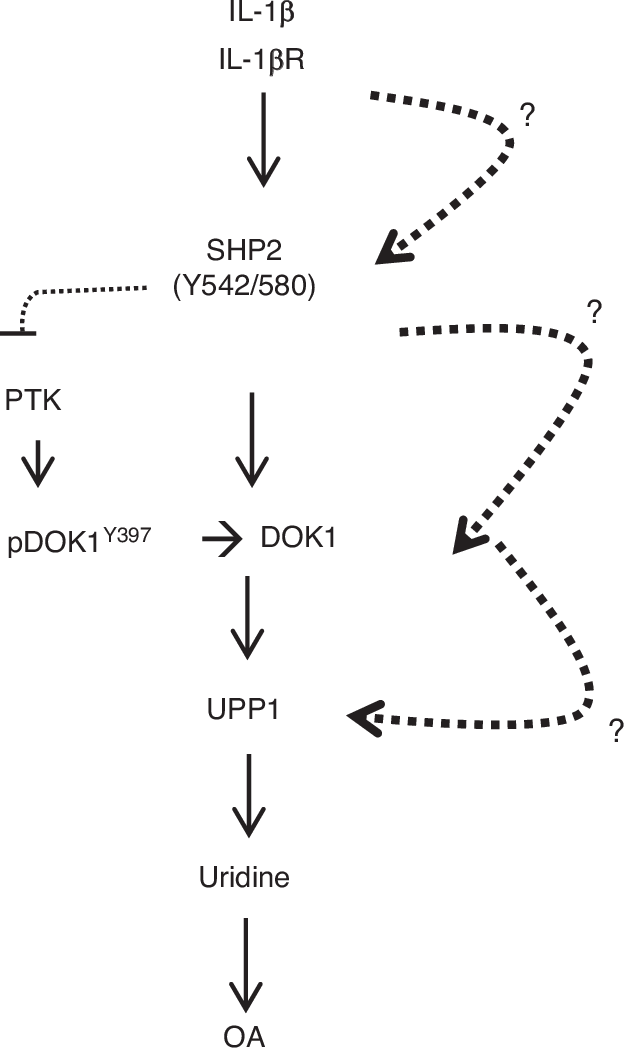

Diagram illustrating the signaling molecules and pathways evoked by IL-1β in driving OA pathogenesis described by Liu, et al.111 Dash lines and question marks between signaling molecues indicationg the lack of data supporting their connection. PTK protein tyrosine kinase
