Fig. 1 | British Journal of Cancer

Fig. 1

From: The immunologic constant of rejection classification refines the prognostic value of conventional prognostic signatures in breast cancer

Fig. 1

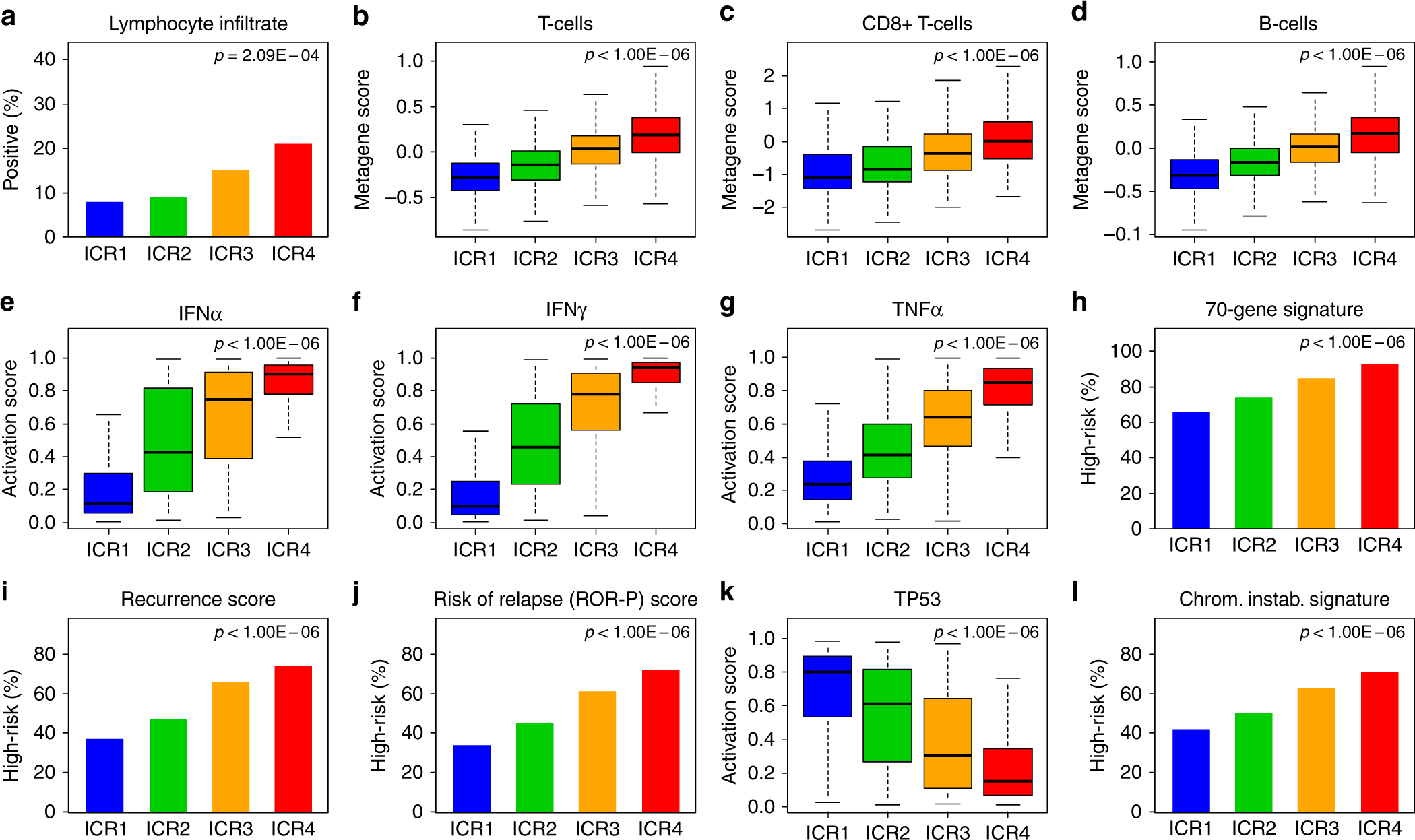

Correlations of ICR classes with immunity-related parameters and prognostic gene expression signatures of breast cancer. For each ICR class, are indicated the percentage of samples with high lymphocyte infiltrate score samples (a), metagene expression scores of T cells (b), CD8+ cells (c), and B cells (d), activation score of IFNα (e), IFNγ (f), and TNFα (g) pathways, percentage of high-risk samples according to the 70-gene signature (h), the Recurrence score (i), and the Risk of Relapse (ROR-P) score (j), activation score of P53 pathway (k), and percentage of high-risk samples according to the chromosomal instability signature (l). The p-values are indicated (Fisher’s exact test or ANOVA test when appropriate)
