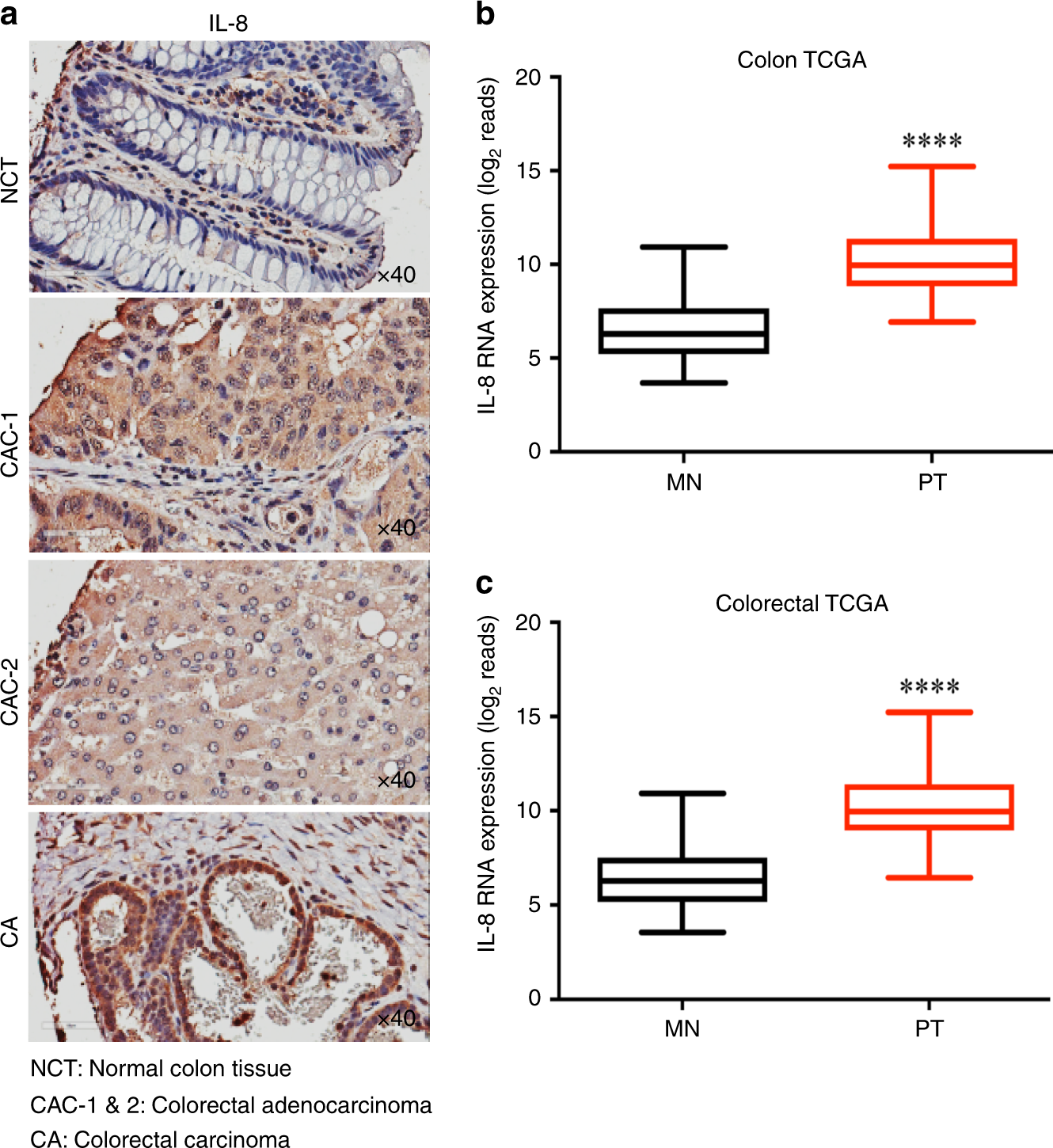

Fig. 1
From: Hsp60 and IL-8 axis promotes apoptosis resistance in cancer
IL-8 is overexpressed in colon cancers. a Immunohistochemistry (IHC) analysis of IL-8 expression in normal colon, human colorectal adenocarcinoma, and colorectal carcinoma tissue samples using tissue microarray (TMA) sections. Images were scanned using Aperio ImageScope. b, c TCGA analysis for IL-8 transcript levels in colon (n = 26) and colorectal cancer (n = 34). MN matched non-tumour tissues, PT primary tumour tissues. Data is presented as mean ± SD. ****p < 0.05 vs respective controls
