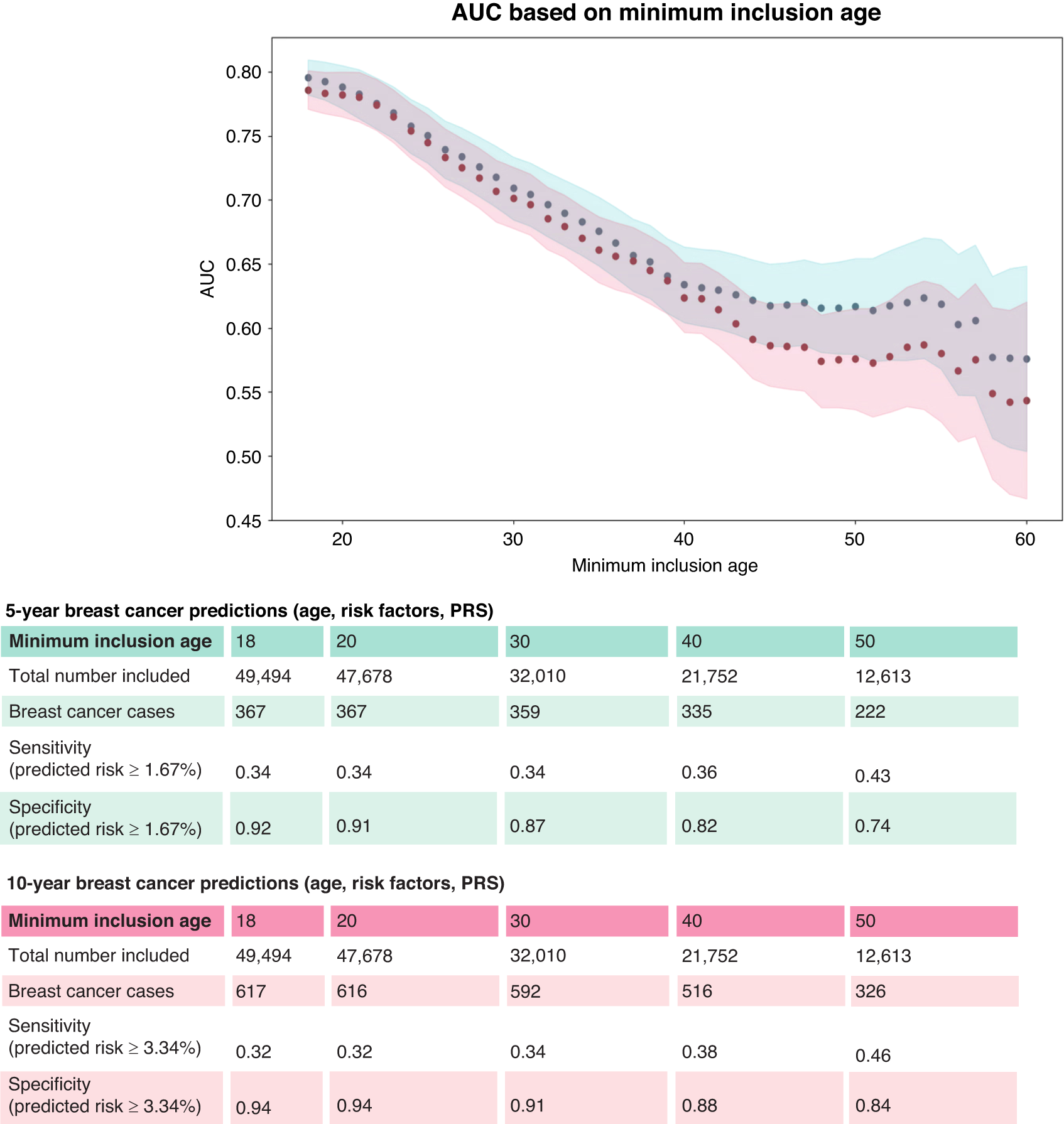

Fig. 3: AUC based on minimum baseline age.
From: Breast cancer risk prediction with a modified BOADICEA model in Danish women
AUCs were calculated for the full 5-year (blue) and 10-year (red) breast cancer risk models (age, risk factors, PRS) across subsets defined by the minimum study baseline age. The age range considered all women in the cohort until the age of 60. The total number of women included, and the number of breast cancer cases, is listed for both models and minimum baseline age groups of 18, 20, 30, 40, and 50. Sensitivity and specificity were calculated for these groups with risk thresholds of 1.67% (5-year risk) and 3.34% (10-year risk).
