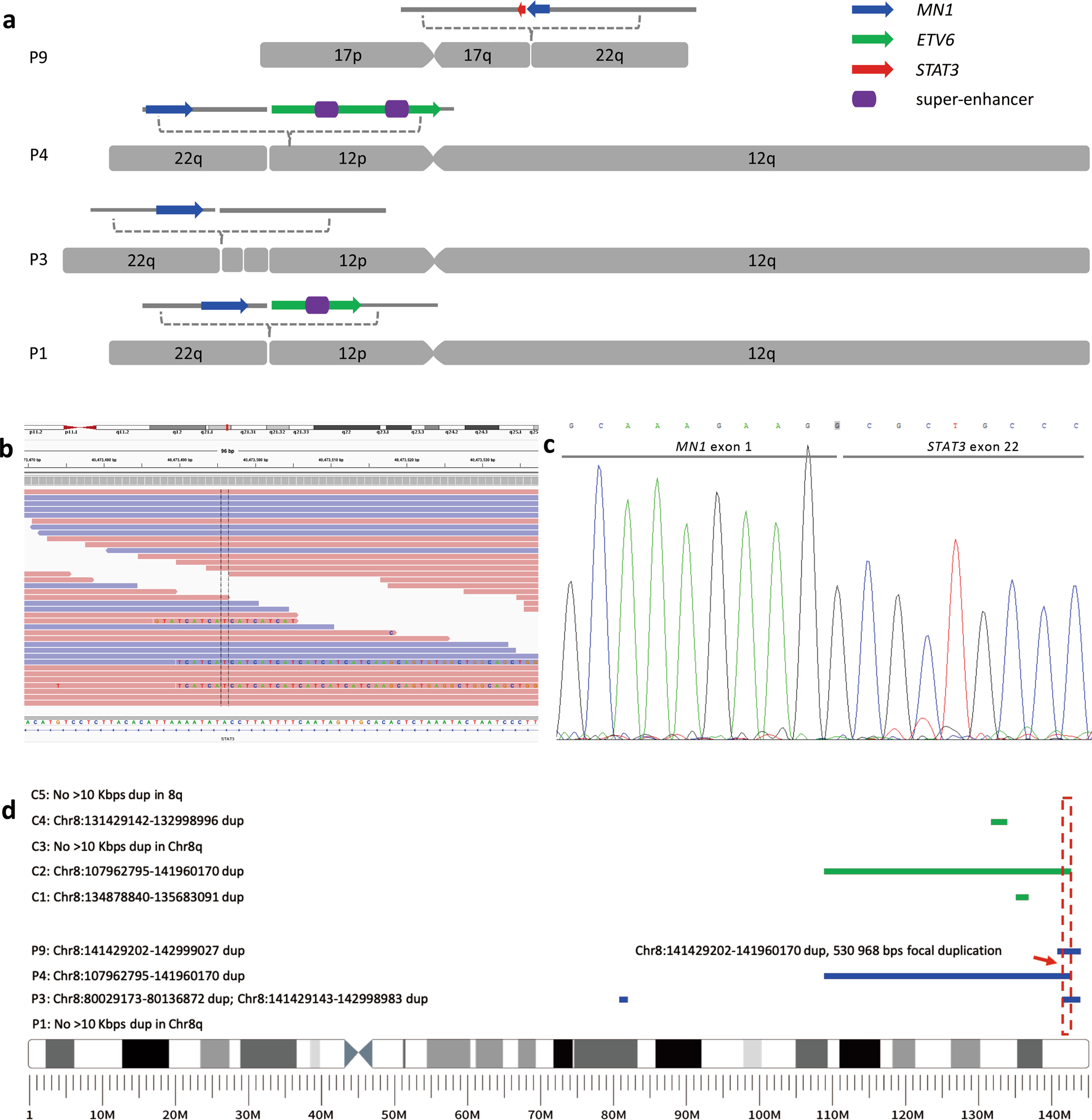

Fig. 3: Genomic analysis of MN1-ETV6 negative cases.
From: Ectopia associated MN1 fusions and aberrant activation in myeloid neoplasms with t(12;22)(p13;q12)
a Structural diagram of MN1 ecotopia in MN1-ETV6 negative cases. b, c Genomic sequence of MN1 intron 1- STAT3 intron 21 splicing (b) and Sanger sequencing of MN1-STAT3 transcripts (c). d Chromosome (Chr) 8 duplication analysis.
