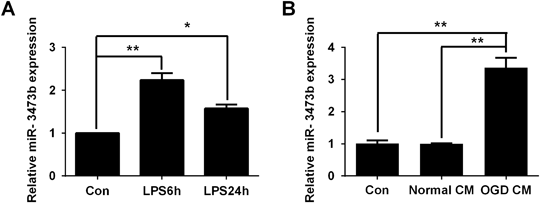

Fig. 4: Increased expression of miR-3473b in BV2 microglia stimulated to induce the inflammatory phenotype
From: miRNA-3473b contributes to neuroinflammation following cerebral ischemia
a Compared to the control group treated with vehicle, the BV2 cells stimulated with LPS showed a significant increase in miR-3473b expression at 6 and 24 h after LPS treatment (n = 3 per group). b BV2 cells treated with conditioned medium collected from OGD neurons also displayed enhanced expression of miR-3473b compared to BV2 cells treated with normal neuronal medium (Normal CM) or control BV2 microglia without treatment (n = 4 per group). Data are representative of three to four independent experiments. *P < 0.05, **P < 0.01; compared with the control groups or the Normal CM groups
