Figure 4: Non-classical and intermediate monocytes secrete high levels of pro-inflammatory cytokines basally. | Cell Death & Disease

Figure 4: Non-classical and intermediate monocytes secrete high levels of pro-inflammatory cytokines basally.

From: The pro-inflammatory phenotype of the human non-classical monocyte subset is attributed to senescence

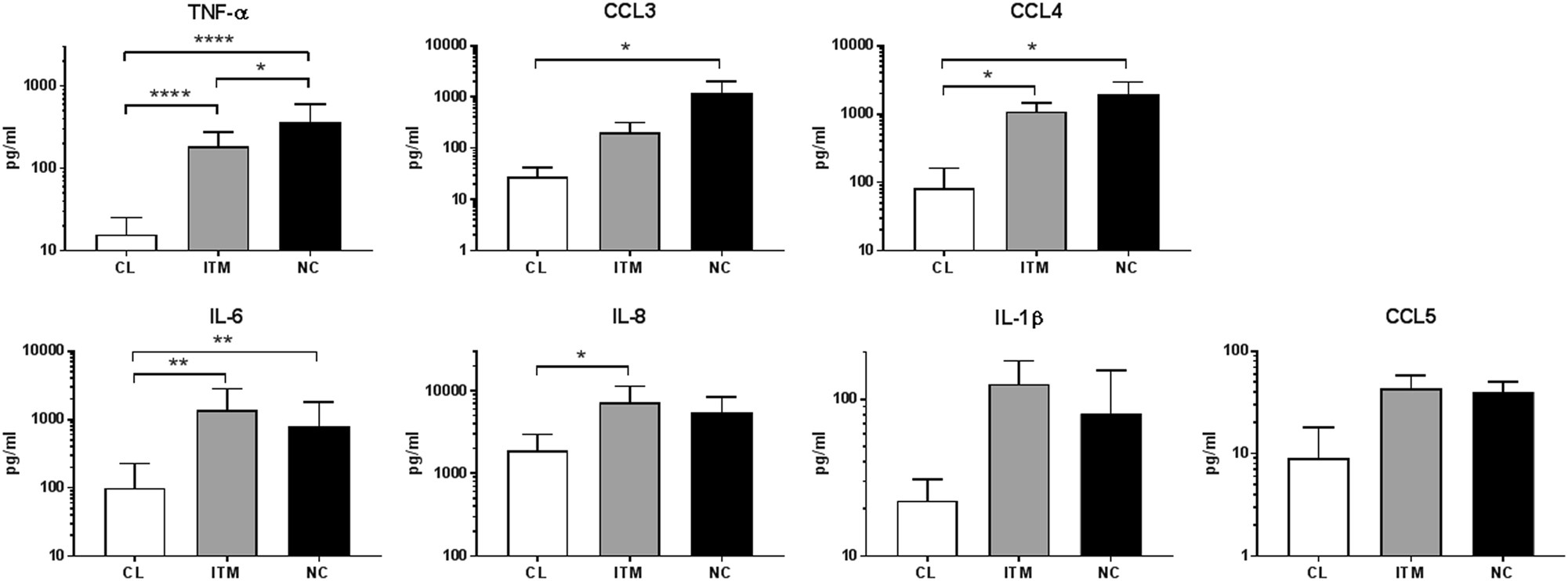

Figure 4: Non-classical and intermediate monocytes secrete high levels of pro-inflammatory cytokines basally.

TNF-α, CCL3, CCL4, CCL5, IL-6, IL-8 and IL-1β secretion was analyzed by Luminex assay after overnight culture. The data represent the means ± SD; n = 3. *p < 0.05; **p < 0.01; ****p < 0.0001. CL: classical, ITM: intermediate, NC: non-classical
