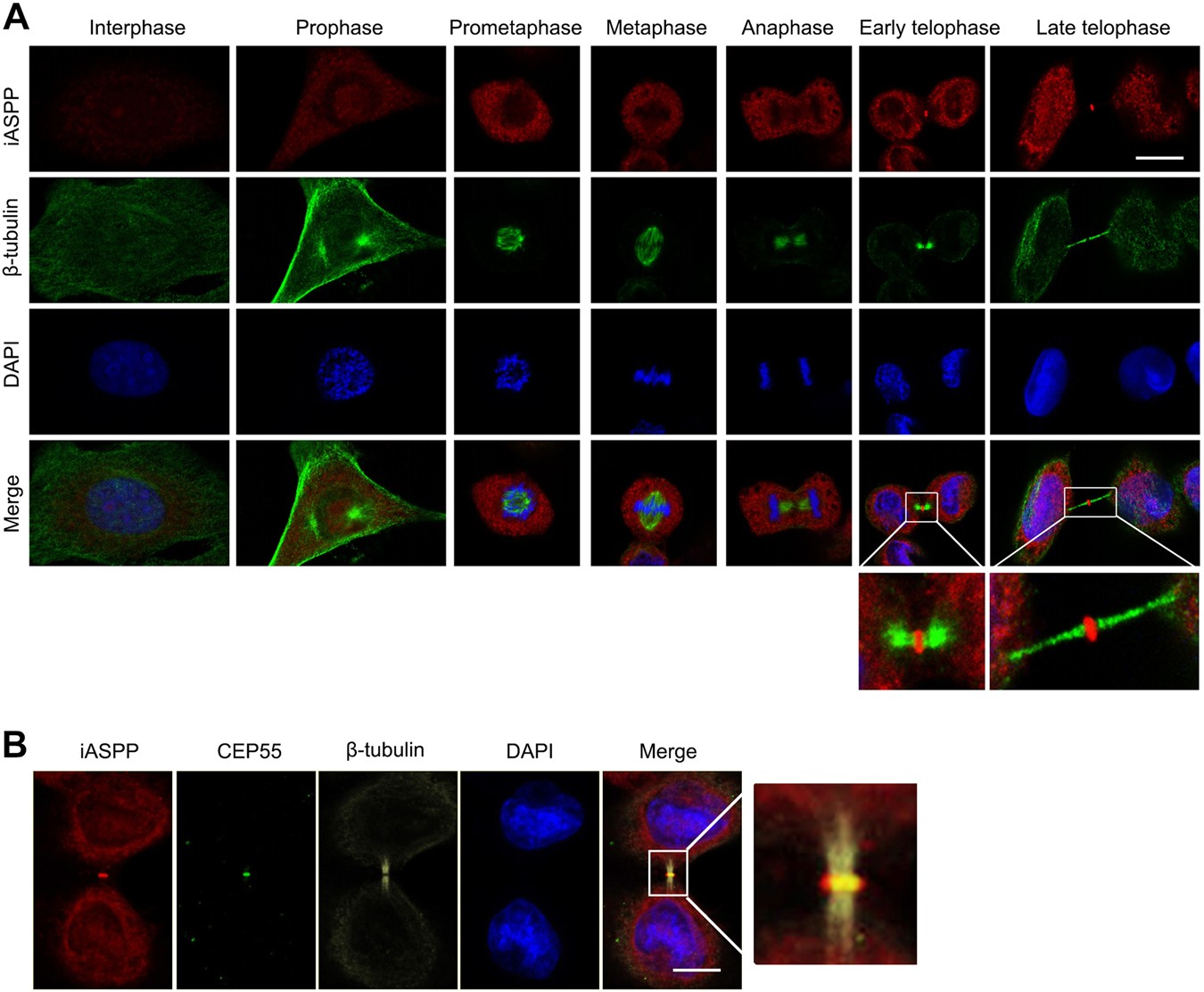

Fig. 2: Cellular localization of endogenous iASPP during mitosis in human HeLa cells.
From: iASPP–PP1 complex is required for cytokinetic abscission by controlling CEP55 dephosphorylation
a iASPP is detected at the midbody during cytokinesis. HeLa cells were immunostained for iASPP, β-tubulin, and DNA. The boxed areas in the merged images of cells in telophase showed at a higher magnification. Bar, 10 μm. b The colocalization of iASPP and CEP55 at midbody was detected by immunofluorescence. HeLa cells were immunostained for iASPP, β-tubulin, CEP55, and DNA
