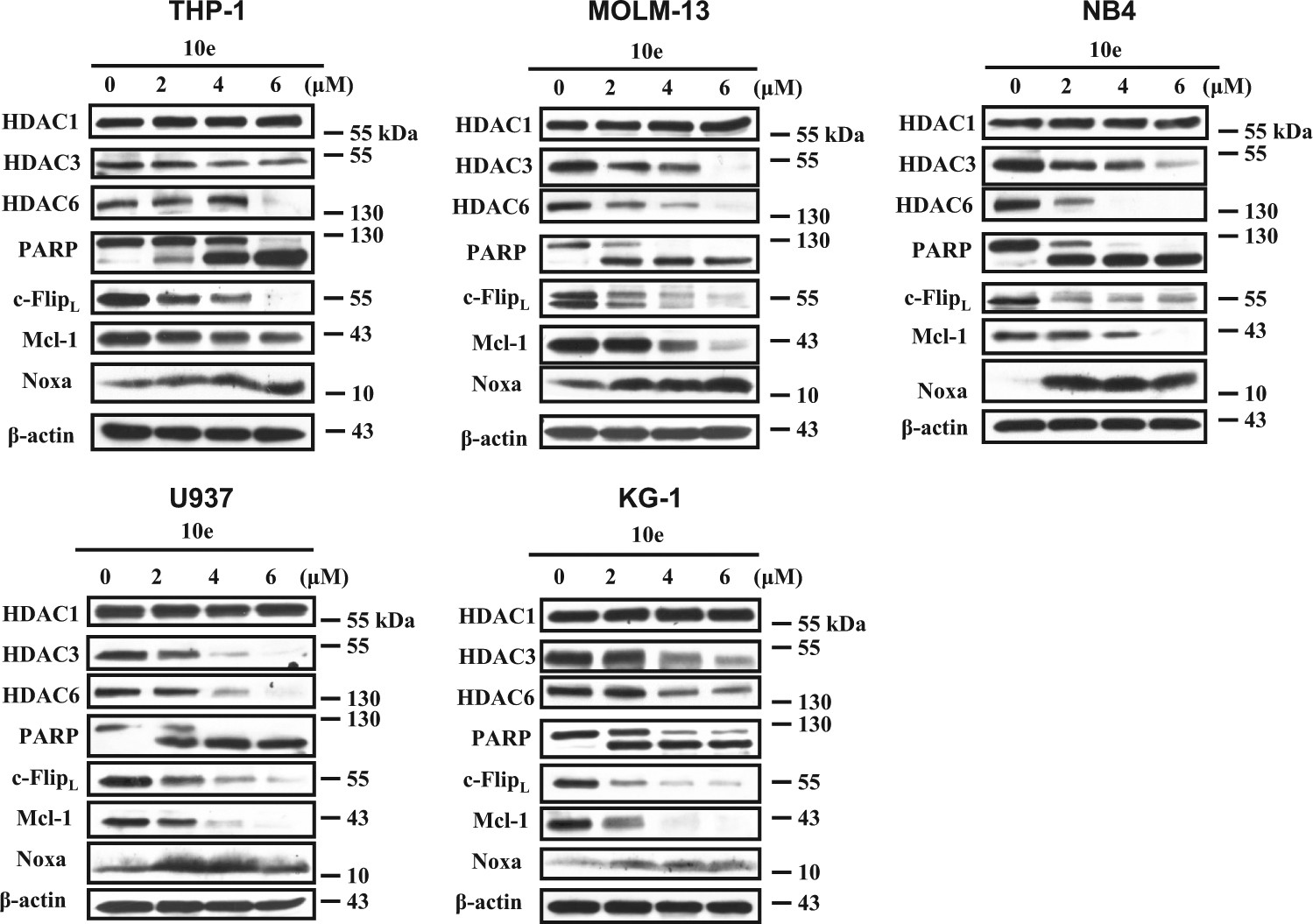

Fig. 3: The regulation of 10e on the protein levels of c-Flip, Mcl-1, Noxa, HDAC3, and HDAC6 in different AML cell lines.

THP-1, MOLM-13, NB4, U937, and KG-1 cells were treated with 10e at the indicated concentrations for 6 h. The levels of each indicated protein were determined with Western blotting
