Fig. 1: The differential expression of SNHG7 in CRC tissues and cell lines and subcellular location. | Cell Death & Disease

Fig. 1: The differential expression of SNHG7 in CRC tissues and cell lines and subcellular location.

From: LncRNA SNHG7 sponges miR-216b to promote proliferation and liver metastasis of colorectal cancer through upregulating GALNT1

Fig. 1

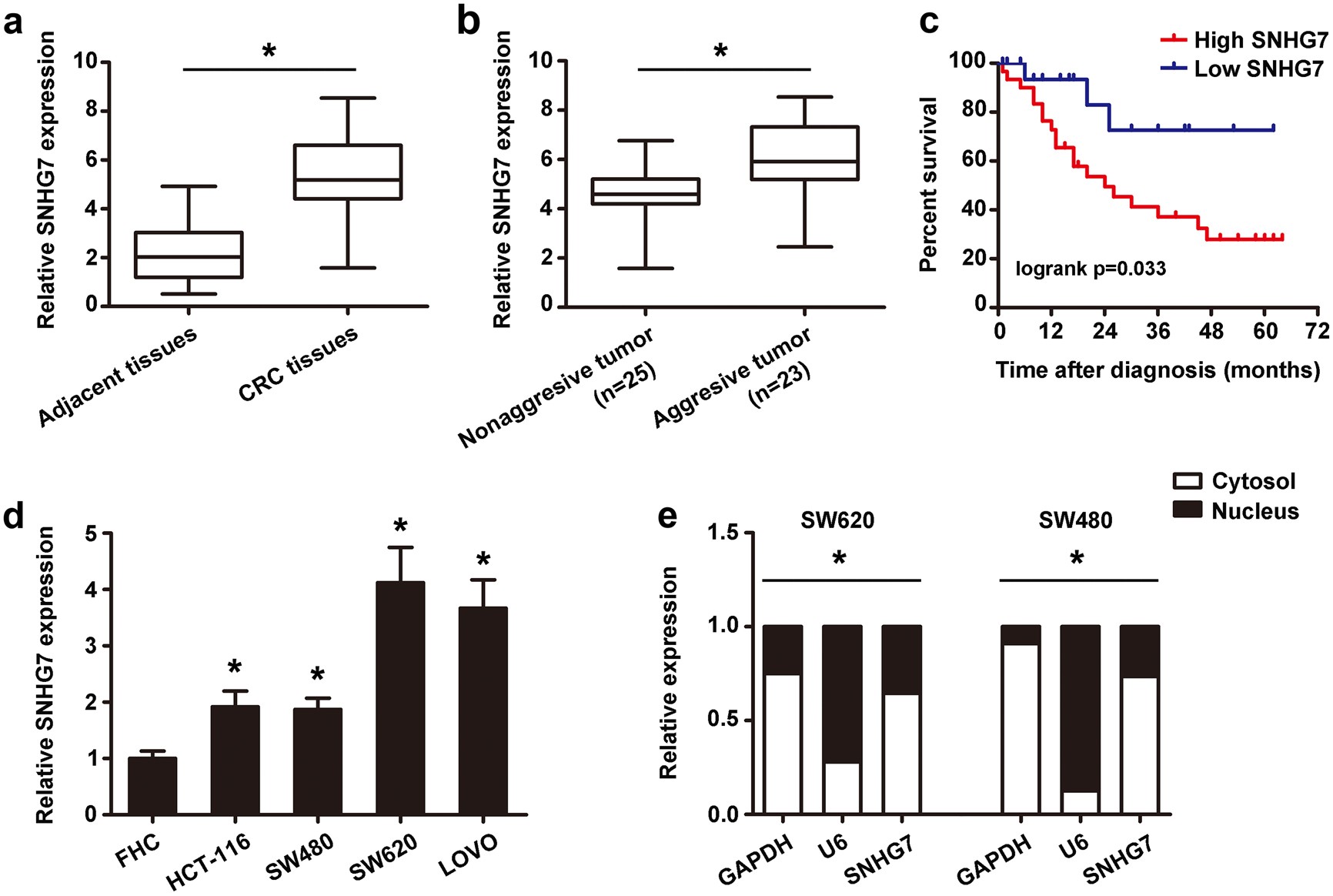

a The differential expression of SNHG7 in CRC samples (n = 48) and adjacent normal colon tissues (n = 48) was shown. b The differential expression of SNHG7 in CRC patients with liver metastasis (n = 23) and without metastasis (n = 25) was analyzed. c Kaplan−Meier analyses of the correlations between SNHG7 level and overall survival of 48 patients with CRC (p = 0.033; log-rank test). The median of the dataset is selected as the cutoff point between “High SNHG7” and “Low SNHG7”. d The differential levels of SNHG7 in CRC cell lines and FHC cell were examined. e Cellular localization of SNHG7 in CRC cells was shown. GAPDH and U6 served as a cytoplasmic and nuclear localization marker, respectively. The error bars in all graphs represented SD, and each experiment was repeated three times. *p < 0.05
