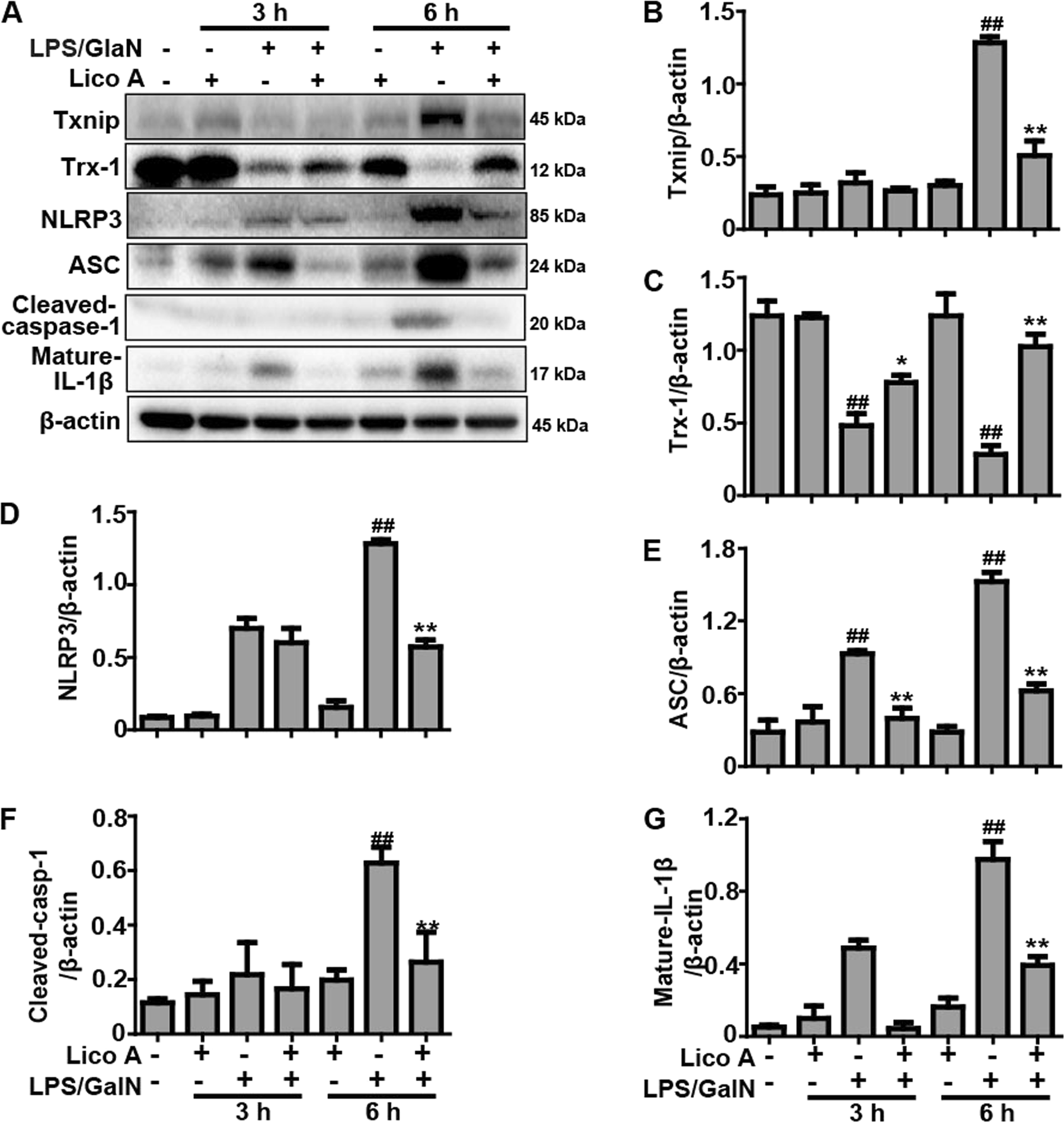

Fig. 5: Effects of Lico A-treated on LPS/GalN-induced Txnip-NLRP3 inflammasome signaling pathway in ALI mice. | Cell Death & Disease

Fig. 5: Effects of Lico A-treated on LPS/GalN-induced Txnip-NLRP3 inflammasome signaling pathway in ALI mice.

From: Nrf2 signaling and autophagy are complementary in protecting lipopolysaccharide/d-galactosamine-induced acute liver injury by licochalcone A

Fig. 5: Effects of Lico A-treated on LPS/GalN-induced Txnip-NLRP3 inflammasome signaling pathway in ALI mice.The alternative text for this image may have been generated using AI.

Liver tissues were collected from the mice 3 h and 6 h after LPS/GalN challenge and analyzed by western blot. a Effects of Lico A treatment on LPS/GalN-induced Txinp, Trx-1, NLRP3, ASC, Cleaved-caspase-1, and Mature-IL-1β were measured by western blotting. b–g Quantification of relative protein expression was performed by densitometric analysis and β-actin was used as an internal control. Similar results were obtained from three independent experiments. All data are presented as means±SEM (n = 5/group). *p < 0.05, **p < 0.01 vs. LPS/GalN group; ##p < 0.01 vs. Control group
