Fig. 1: LMCD1 expression is upregulated during the osteogenic differentiation process of BMSCs. | Cell Death & Disease

Fig. 1: LMCD1 expression is upregulated during the osteogenic differentiation process of BMSCs.

From: LMCD1 promotes osteogenic differentiation of human bone marrow stem cells by regulating BMP signaling

Fig. 1

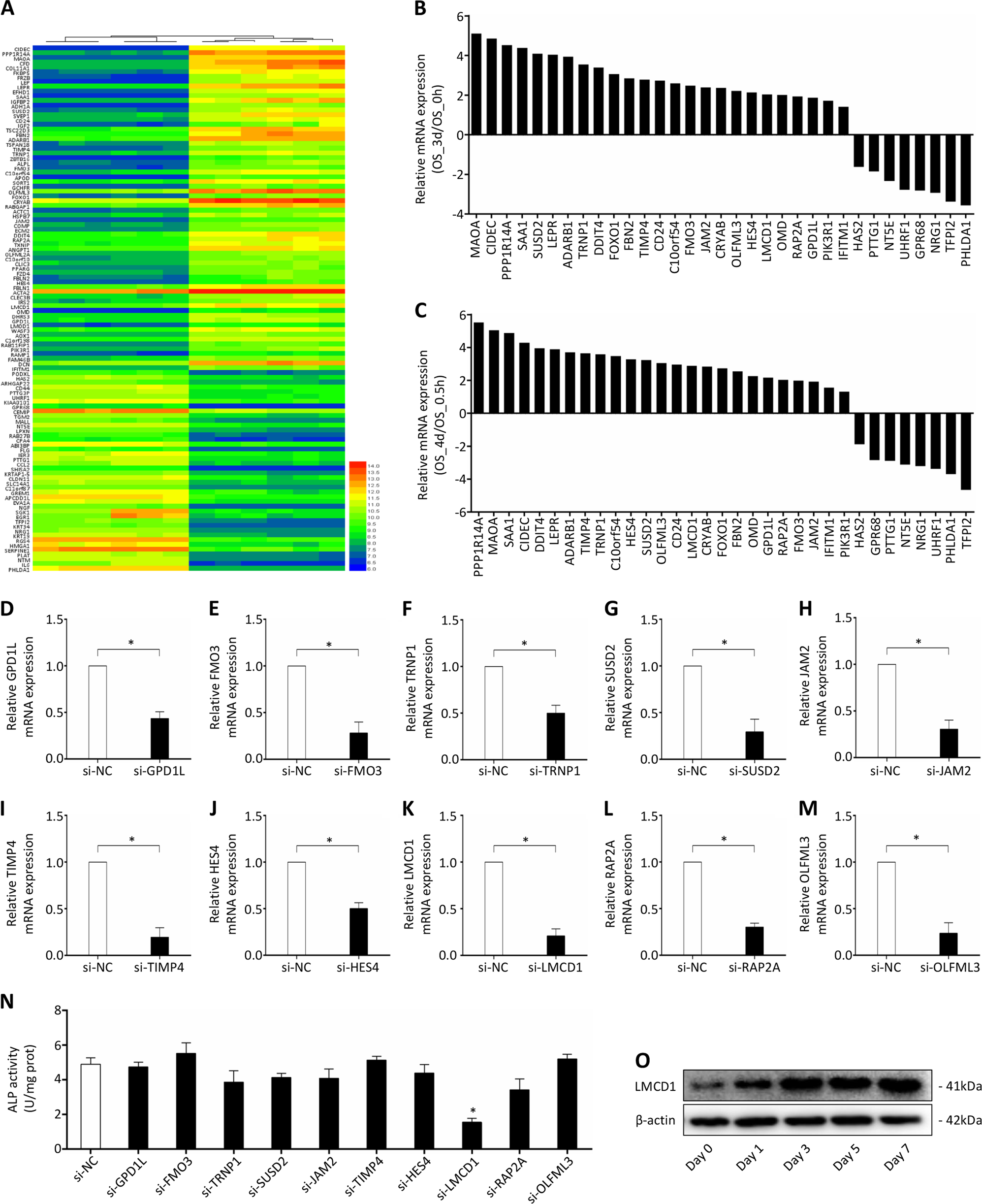

a Heat map of the regulated genes by comparing the expression at the differentiation time of 3 or 4 days with that at 0 or 0.5 h. b, c 33 genes were chosen to validate the reliability of the dataset by qRT-PCR. d–n 10 upregulated genes were chosen for functional screen by siRNA knockdown and ALP assay. o The expression of LMCD1 during the osteogenic differentiation process of BMSCs was measured by western blotting
