Fig. 4: RFA induces remodeling of tumor-infiltrating lymphoid cells. | Cell Death & Disease

Fig. 4: RFA induces remodeling of tumor-infiltrating lymphoid cells.

From: High-dimensional single-cell analysis delineates radiofrequency ablation induced immune microenvironmental remodeling in pancreatic cancer

Fig. 4

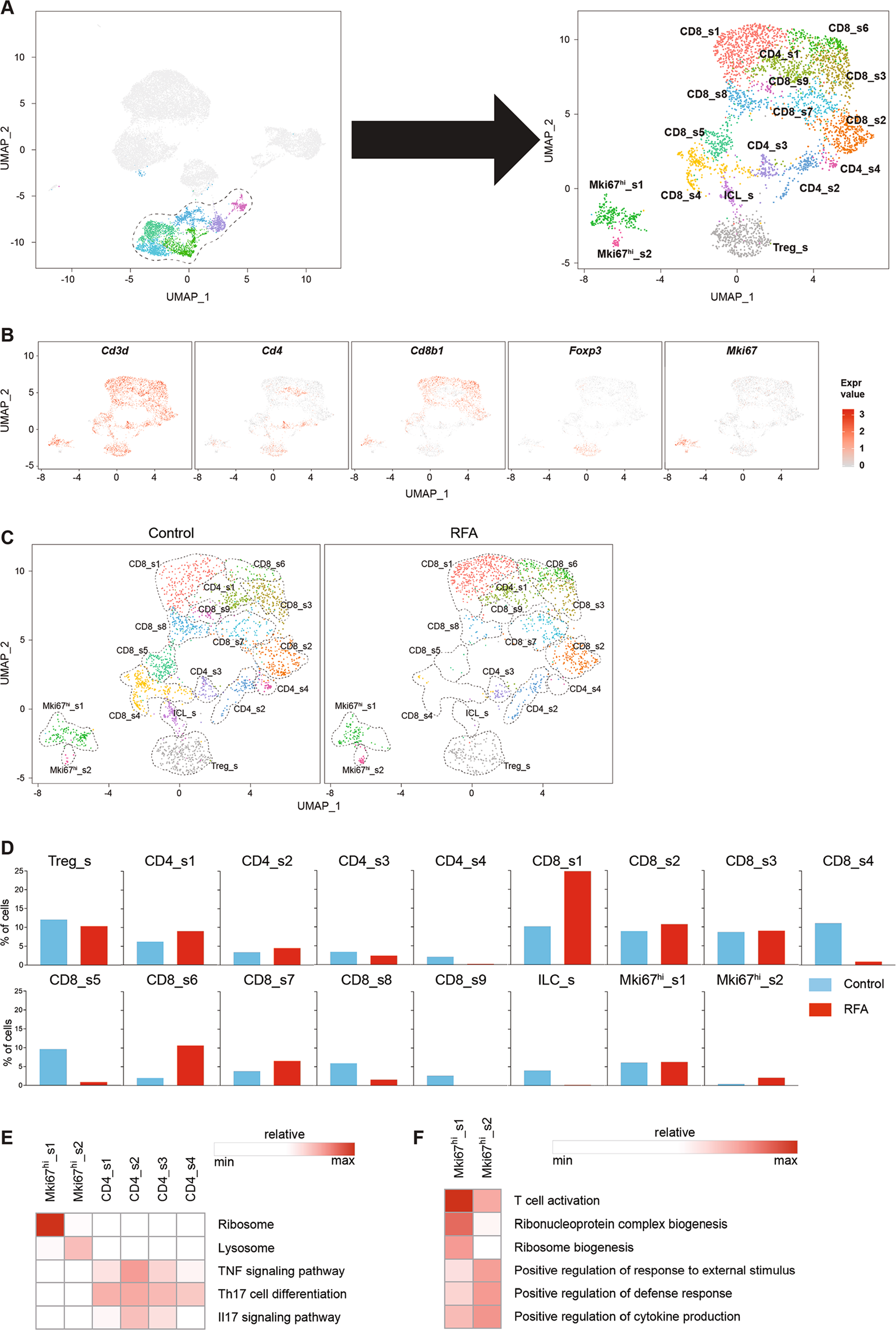

a UMAP plot showing the merged data of intratumoral lymphocytes. b UMAP plot of lymphoid cells displaying select marker-gene expression. c Comparison of each cluster in two groups. d Percentage of cells in each cluster by condition. e Heatmap of gene ontology identifying pathway enrichment by each subpopulation. f Heatmap of KEGG enrichment analysis enrichment by clusters.
