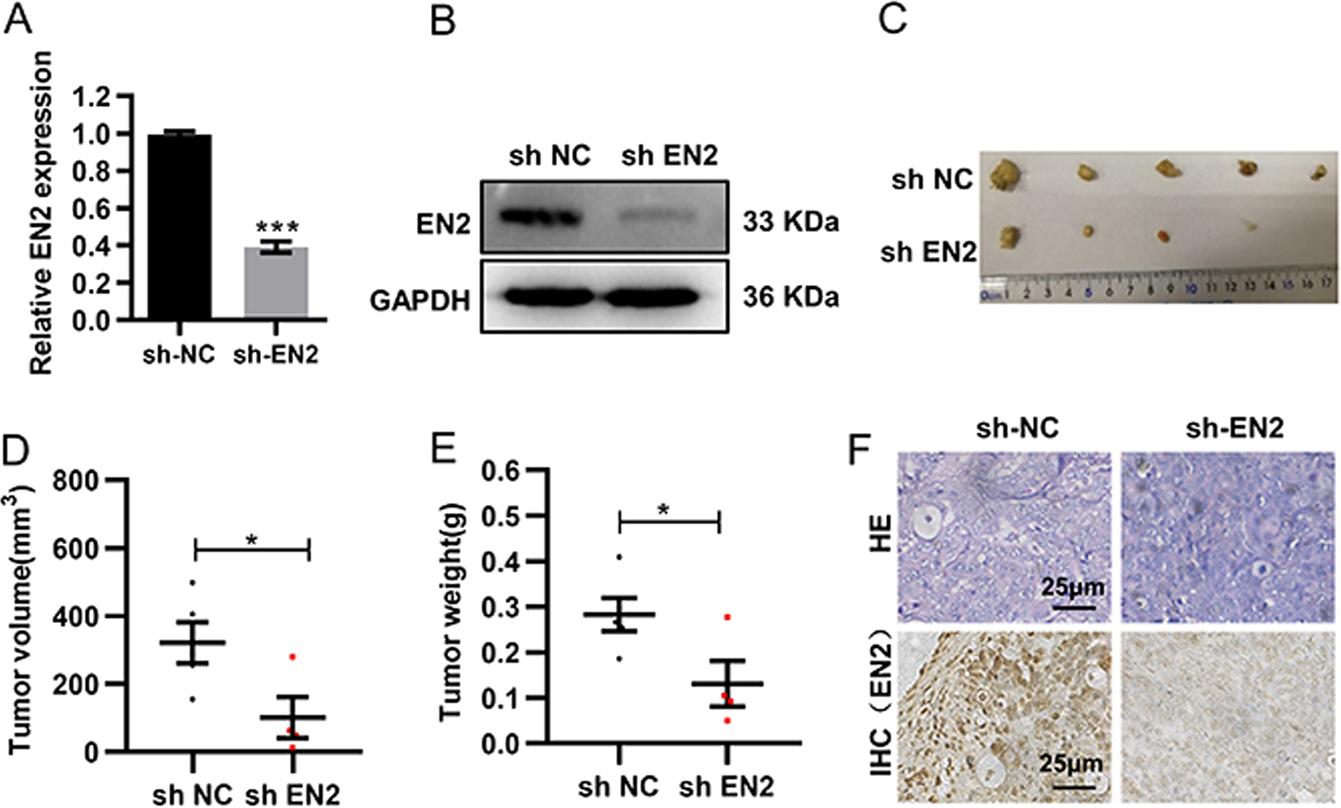

Fig. 3: EN2 knockdown restrains tumor growth in vivo.
From: EN2 as an oncogene promotes tumor progression via regulating CCL20 in colorectal cancer
a, b The knockdown of EN2 in SW480 cells were identified by qRT-PCR (a) and western blotting (b). c The tumor growth curves of shRNA-EN2 and shRNA-NC groups in the xenograft mouse model. d, e The tumor volume (d) and weight (e) of nude mice were measured. f Representative images of H&E staining and IHC staining in subcutaneous tumors from nude mice. Scale bar: 25 µm. Data are presented as mean ± SEM. *P < 0.05.
