Fig. 7: The effect of PRRX1 on the growth of CRC tumors.

From: The rs7911488-T allele promotes the growth and metastasis of colorectal cancer through modulating miR-1307/PRRX1

Fig. 7: The effect of PRRX1 on the growth of CRC tumors.

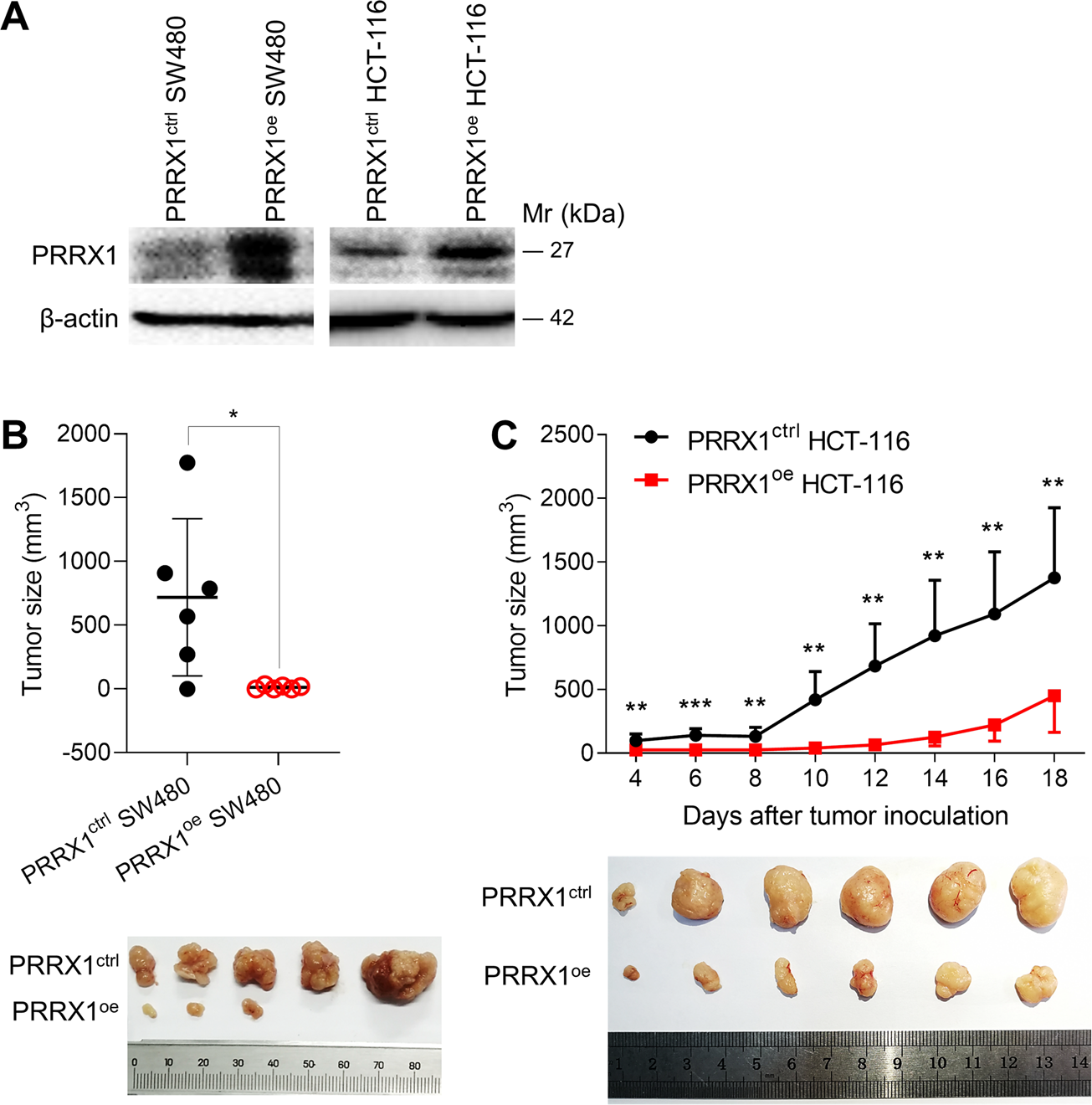

a The expression of PRRX1 protein in PRRX1oe SW480 and PRRX1oe HCT-116 cells. b The volumes and photos of tumors grafted with PRRX1oe and PRRX1ctrl SW480 cells in nude mice (n = 6). c The growth curve and photos of tumors grafted with PRRX1oe and PRRX1ctrl HCT-116 cells in nude mice (n = 6). Data represent mean ± SD. Significance was assessed by two-sided t-test. ***P < 0.001; **P < 0.01; *P < 0.05.
