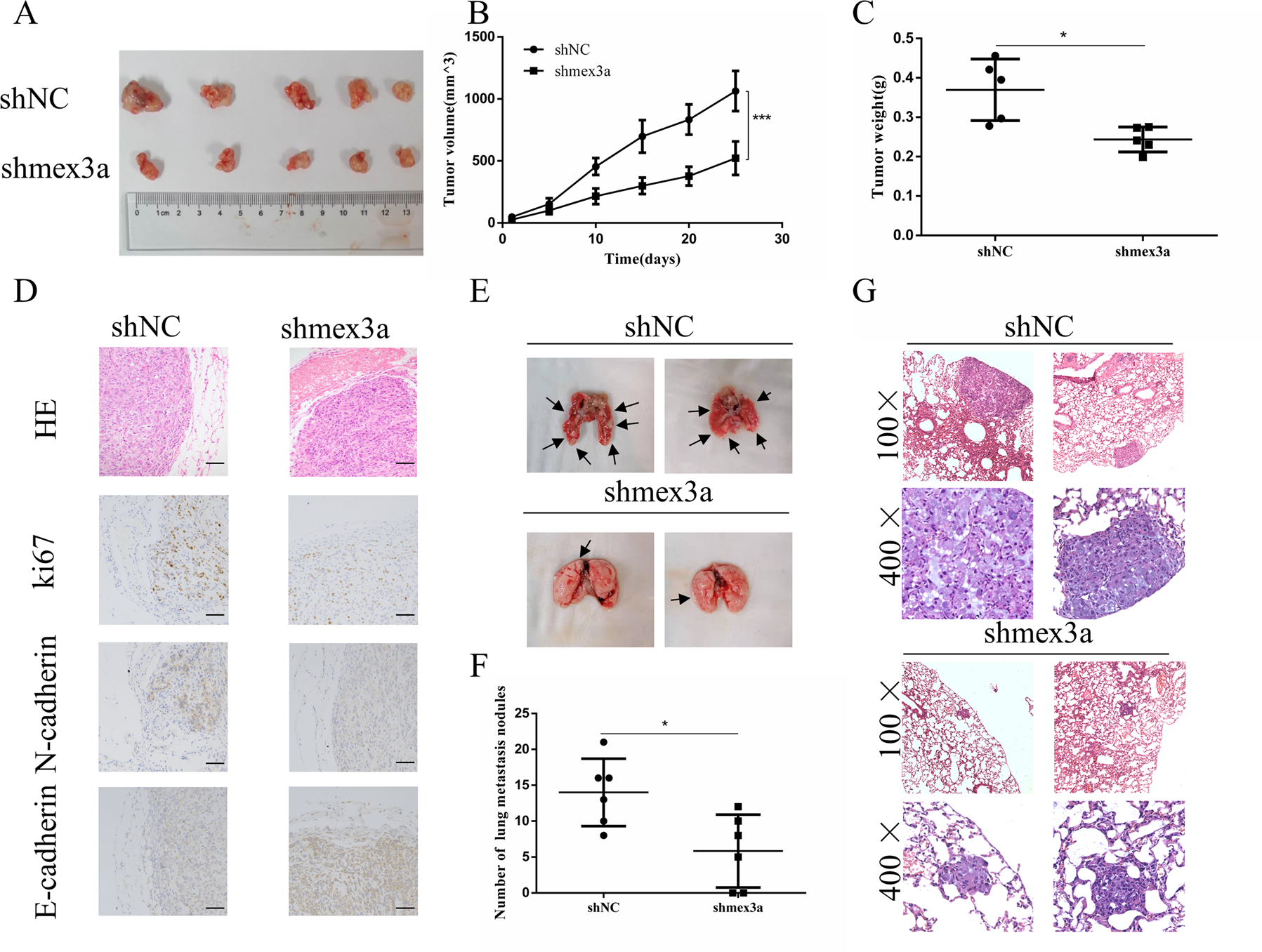

Fig. 3: Mex3a promotes LUAD cell proliferation and metastasis in vivo.
From: Mex3a interacts with LAMA2 to promote lung adenocarcinoma metastasis via PI3K/AKT pathway
a Representative images of tumor from different treatment groups 5 weeks after tumor injections. b, c The volumes (b) and weights (c) were lower for xenograft tumors with mex3a knockdown than for xenograft tumors with scrambled shRNA. d Representative images of IHC staining of Ki67, E-cadherin, and N-cadherin in xenograft tumors. e Representative images of lung metastasis. f Bar chart of lung metastasis nodules in shNC and shmex3a groups. g Representative images of HE staining of lung metastasis. *P < 0.05, **P < 0.01, ***P < 0.001, and ****P < 0.0001.
