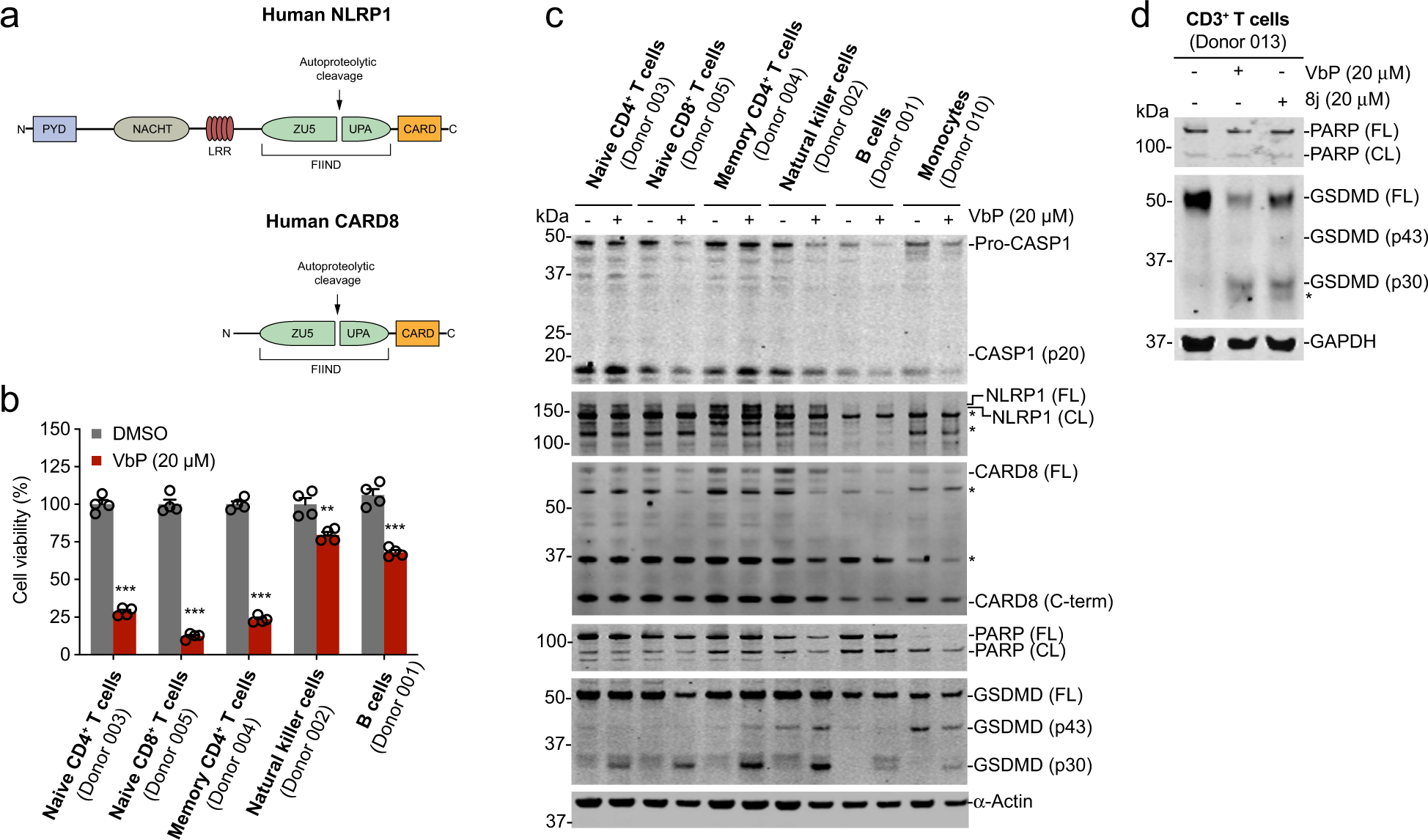

Fig. 1: DPP8/9 inhibitors induce pyroptosis in primary lymphocytes.
From: DPP8/9 inhibitors activate the CARD8 inflammasome in resting lymphocytes
a Domain structures of human NLRP1 and CARD8. Note that the ZU5 and UPA sub-domains together are referred to as a FIIND. b, c The indicated primary cells were treated with VbP (24 h) before cell death was assessed by Cell-TiterGlo (b) and lysates were evaluated by immunoblotting (c). Data are means ± s.e.m. of four biological replicates. d CD3+ T cells were treated with VbP (20 μM, 24 h) or 8j (20 μM, 24 h) before lysates were evaluated by immunoblotting. Immunoblots are representative of three independent experiments.
