Fig. 7: ClC-3 and SGK1 were positively correlated and highly expressed in human STAD tissues. | Cell Death & Disease

Fig. 7: ClC-3 and SGK1 were positively correlated and highly expressed in human STAD tissues.

From: ClC-3/SGK1 regulatory axis enhances the olaparib-induced antitumor effect in human stomach adenocarcinoma

Fig. 7: ClC-3 and SGK1 were positively correlated and highly expressed in human STAD tissues.

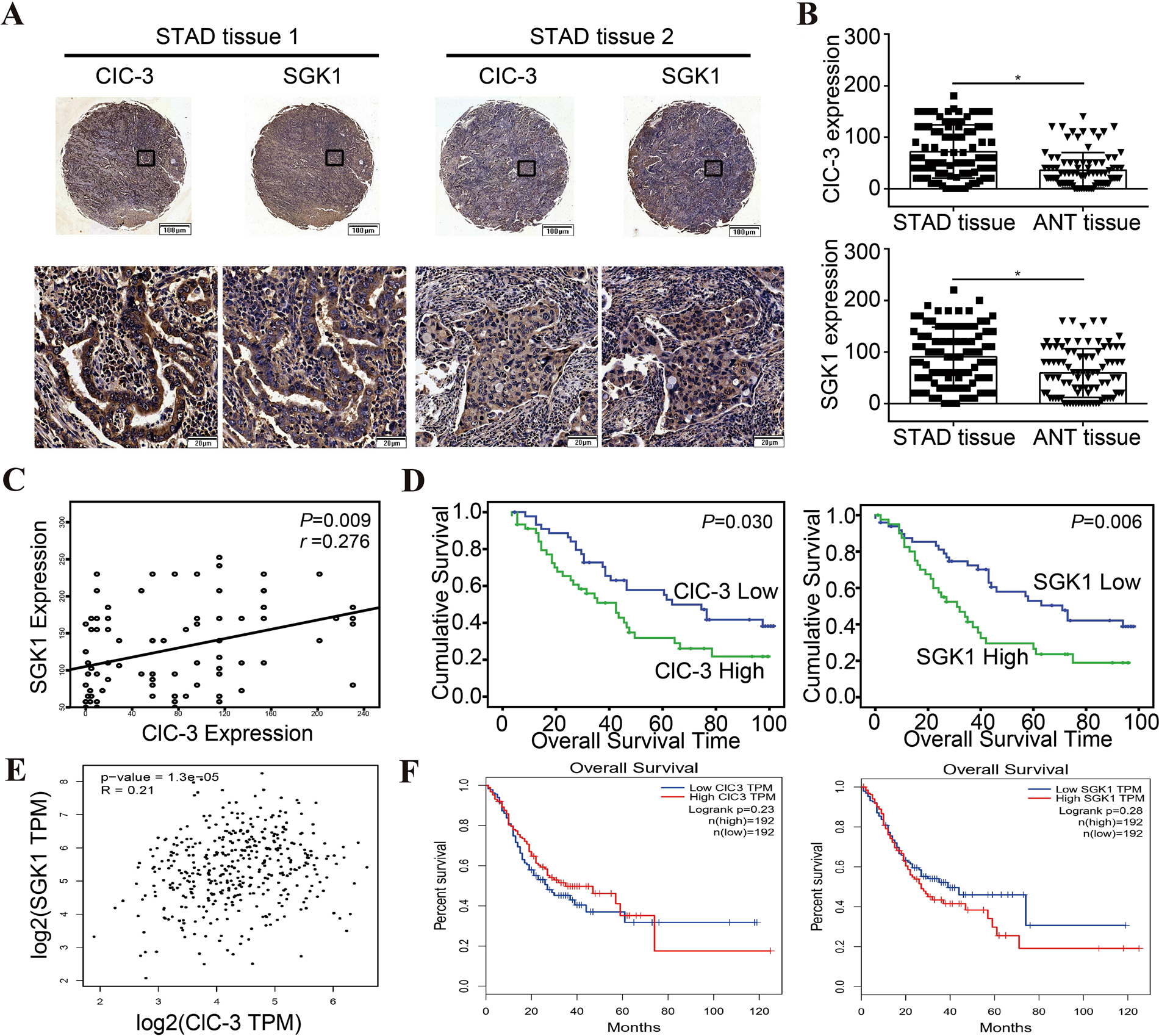

A Representative images of ClC-3 and SGK1 protein expression in human STAD tissues. B The protein expression of ClC-3 and SGK1 in 90 STAD tissues was higher than that in ANTs. C The protein expression of ClC-3 and SGK1 in 90 STAD tissues was positively correlated. D High protein expression of ClC-3 was associated with poor survival rate in STAD patients (left), and high protein expression of SGK1 was also associated with poor survival rate in STAD patients (right). E The transcript per million (TPM) expression of ClC-3 and SGK1 was positively correlated in STAD tissues. F High TPM expression of ClC-3 tended to predict poor survival rate in STAD patients (left), and high TPM expression of SGK1 tended to predict poor survival rate in STAD patients (right). *P < 0.05.
