Fig. 7: Clinical relevance of miR-30a-5p/CLCF1 expression in human HCC.

From: RETRACTED ARTICLE: The miR-30a-5p/CLCF1 axis regulates sorafenib resistance and aerobic glycolysis in hepatocellular carcinoma

Fig. 7

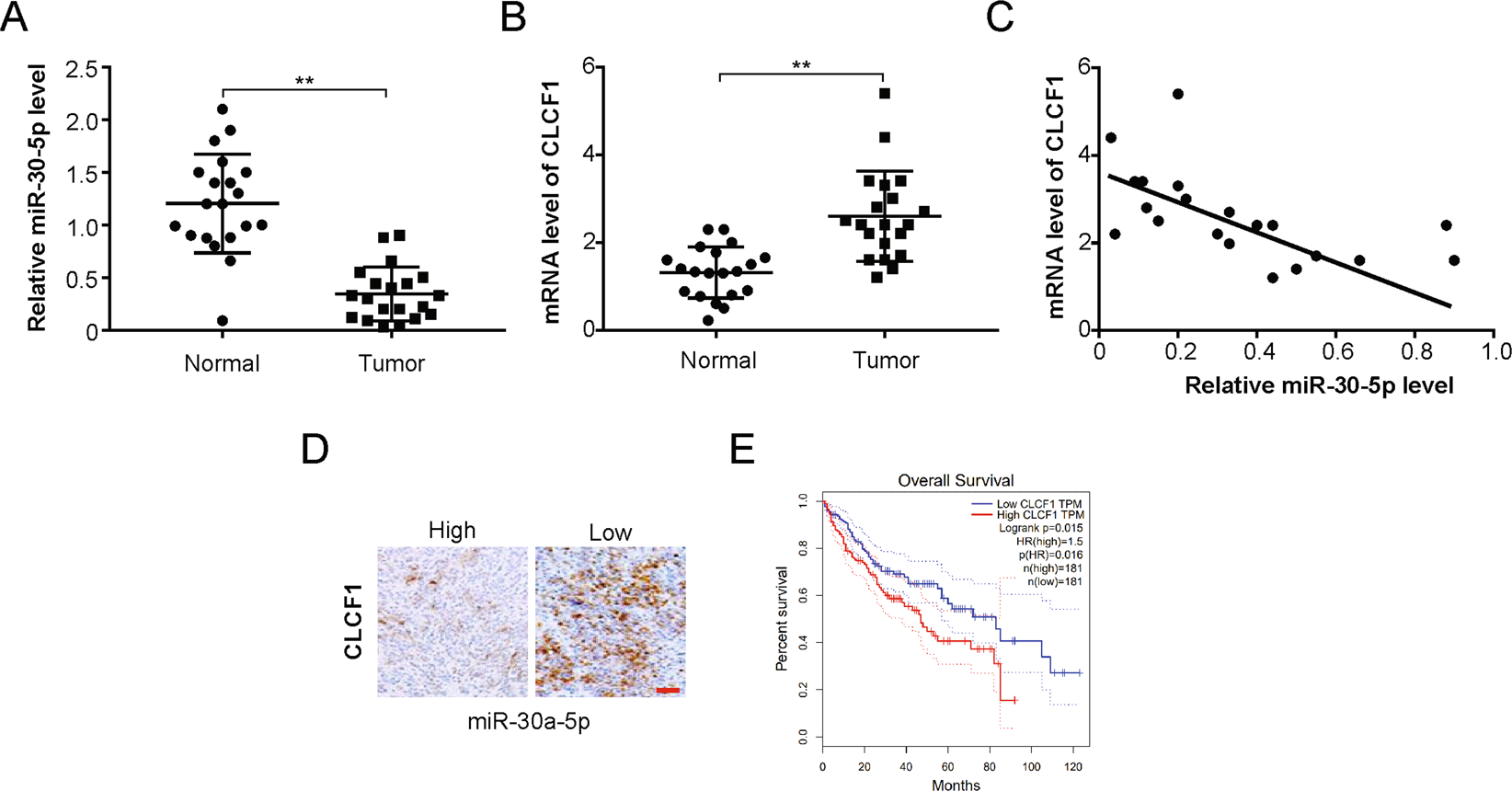

a Comparison of mRNA level of miR-30a-5p in primary human HCC tumors and normal paired adjacent tissues. b Comparison of mRNA level of CLCF1 in primary human HCC tumors and normal paired adjacent tissues. c A negative correlation was seen by Pearson’s correlation analyses in above comparison in human HCC tumor samples. r = −0.78, p < 0.001. d Human HCC tumor sections were IHC stained and representative images of CLCF1 were acquired with low or high miR-30a-5p expression. Scale bars, 25 μm. e TCAG dataset shows that High CLCF1 expression predicate a poor survival in HCC. All data are mean ± SD of three separate experiments. ** P < 0.01.
