Fig. 5: PMN-MDSC and inflammatory cytokines kinetic. | Cell Death & Disease

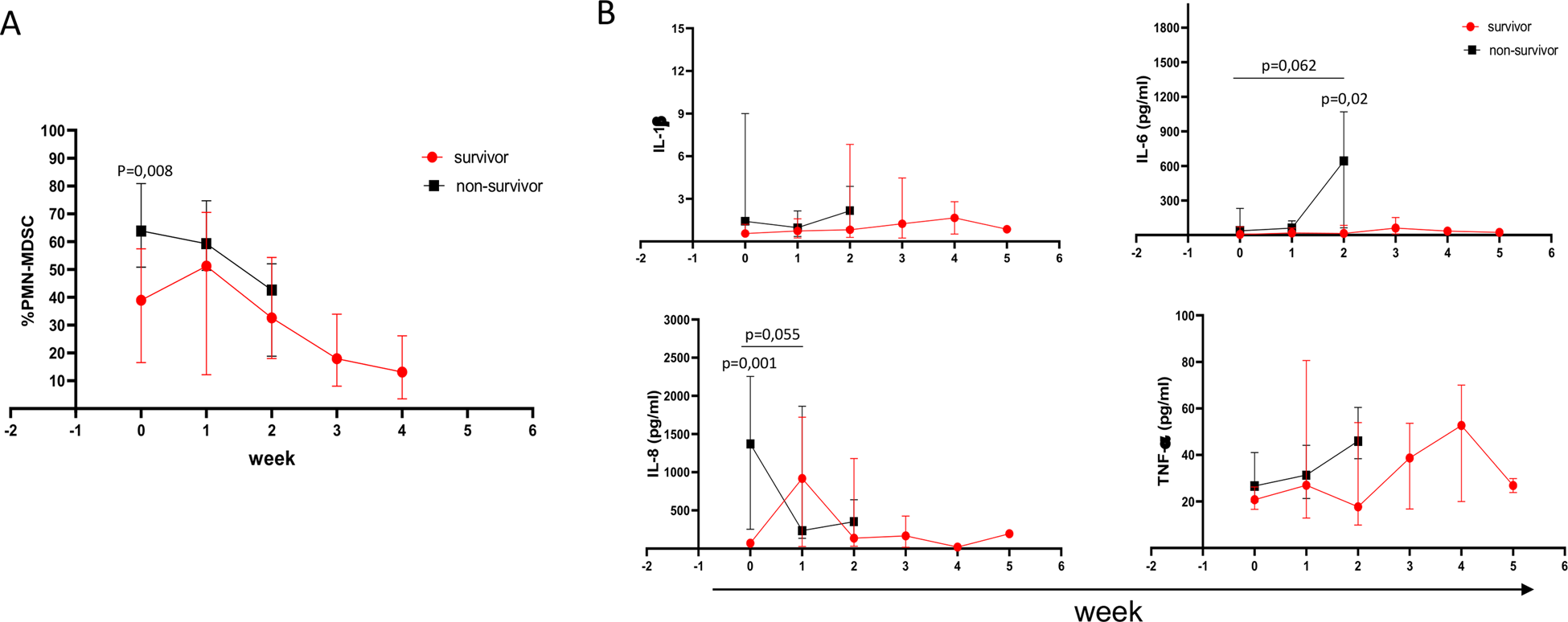

Fig. 5: PMN-MDSC and inflammatory cytokines kinetic.

From: Early expansion of myeloid-derived suppressor cells inhibits SARS-CoV-2 specific T-cell response and may predict fatal COVID-19 outcome

Fig. 5

A PMN-MDSC frequency in survivors (red line) and non-survivor (black line) patients was monitored weekly. Results are expressed as median and IQR. Mann–Whitney or Friedman test were applied to compare the PMN-MDSC frequency between the two groups at different time points or to compare different time points, respectively. A p value < 0.05 was considered significant. B Kinetic of the indicated cytokines in survivors (red line) and non-survivor (black line) patients. Results are expressed as median and IQR. Mann–Whitney or Friedman test were applied to compare the cytokine levels between the two groups at different time points or to compare different time points, respectively. A p value < 0.05 was considered significant.
